In the tab size:
• First number represents tab length
• Second number represents tab width at hinge

The actuator mounts at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than our standard mount

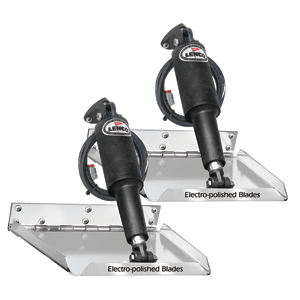

Standard Performance Trim Tabs

OPERATION

The switch is based on the position of the bow. The left side of the switch controls the starboard tab. The right side of the switch controls the port tab. To lower the starboard bow, press the right (starboard) side of the switch where it reads Down. This will lower the port tab. To lower the port bow, press the left (port) side of the switch where it reads Down. This will lower the starboard tab.

The Lenco tactile switch with L.E.D. indicators and retractor is the first switch to integrate a completely waterproof switch with a trim tab indicator.

• Built-in retract feature returns tabs to a fully retracted position when power is removed.
• 2 High intensity L.E.D. indicator displays show the exact position of your trim tabs at all times.
• Photo Eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sun light.
• Backlit key pad graphics for optimum night viewing.
• Self-contained sealed key pad
• Self-contained sealed control box module
• Fade/smudge proof laser engraved graphics
• Do-it-yourself wiring. Quick, easy 15 minute installation
• Over molded plug & play switch wiring harness connector
• Low profile design
• No moving parts
• Solid state electronic components

The operation of the indicator switch is based on the position of the bow. The left side of the switch controls the starboard tab. The right side of the switch controls the port tab. To lower the starboard bow, press the right (starboard) side of the switch where it reads Down. This will lower the port tab. To lower the port bow, press the left (port) side of the switch where it reads Down. This will lower the starboard tab. The LED displays on the sides of the display will show how far that tab has moved.

When the on/off switch is turned on at the helm the LED displays on the indicator switch will show one up arrow on each side of the switch. This shows that both tabs are fully retracted. While functioning the tabs the LED displays will indicate the position of the tabs by lighting up the further they are pressed Down. As the switch is pressed Up the lights will go out. When power is removed from the switch the tabs will retract from any position before powering down.
