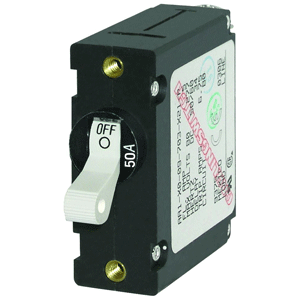

Blue Sea 7230 AC / DC Single Pole Magnetic World Circuit Breaker - 50 Amp
Blue Sea 7230 AC / DC Single Pole Magnetic World Circuit Breaker - 50 Amp

Brand New with Factory's Warranty
List Price: US$20.96
Our Price: US$14.99
You save US$5.97!


Free Shipping
Availability:: Usually ships the next business day
Product Code: 7230

Description Extended Information


A-Series White Toggle Circuit Breaker - Single Pole 50A

7230



  • Meets American Boat and Yacht Council (ABYC) standards
  • The industry standard circuit breaker for Blue Sea Systems' electrical panels
  • Combines switching and circuit protection into a single device
  • "Trip Free" design cannot be held "ON" during fault current condition



Specifications
Amperage 50A AC
50A DC

Color White

Actuator Style Toggle

Poles 1

Maximum Voltage 240V AC
32V DC

Circuit Breaker Type Magnetic Hydraulic - trip free

Interrupt Capacity 3000A @ 120V AC
1500A @ 240V AC [TUV]
3000A @ 240V AC [UL 1077]
7500A @ 65V DC

Minimum Operating Temperature -40° C

Maximum Operating Temperature 85° C

Mounting Screw #6-32 Stainless Steel

Mounting Screw Torque 6 in-lb (0.68 Nm)

Screw Terminal Torque 14 in-lb (1.58 Nm)

Switching Cycles 10000

Terminal Screw #10-32 Stainless Steel

Weight 0.17lb (0.08 kg)
