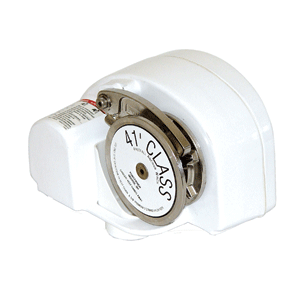

Powerwinch 41' Class Windlass Freefall 900 Lb Pull for 5/16" Chain & 5/8" Line

Home > Anchor & Docking > Anchor Winches >

Brand New with Factory's Warranty

List Price: US$1,239.00

Our Price: US$899.00

You save US$340.00!

Availability:: Usually ships the next business day
Product Code: C16601

Description

Extended Information

Automatic Helm-Operated Free-Fall Windlass

The Safest Way to Anchor !

1. Patented Free-Fall System anchors up to 300'/min – Up to four times faster than powering down
2. Exclusive stainless steel rope & chain guidance system – Durable materials stand up to years of use
3. Ultra smooth motor uses less amps – Free-fall does not need battery power so it preserves your battery
4. Built with durable stainlesssteel fasteners – Resists corrosion for easy removal
5. Watertight seals – For additional protection against corrosion
6. One piece motor plate – For smooth power transmission & improved gear life
7. Heat treated oil-impregnated gear systems –Smoother operation, resists corrosion, lasts longer
8. Stainless steel drive shafts – For years of smooth, reliable performance
9. Replaceable Rode-Glide – Smoothly channels rope and chain below deck
10. Use tapered back splice – For smooth rope-to-chain transitio

Owners Manual

View (pdf)

Model

Sport Fish 450 P77727

Class 31' P77731

Class 36'
P77736

Class 41'
P77741

Class 46'
P77746

Boat Size	Up to 27 feet	Up to 31 feet	Up to 36 feet	Up to 41 feet	Up to 46 feet
Pulling Power	450 lbs	625 lbs	775 lbs	900 lbs	1100 lbs
Retrieval Speed	70' / minute	80' / minute	80' / minute	75' / minute	70' / minute
Anchoring Speed	Up to 150' / minute	Up to 200' / minute	Up to 250' / minute	Up to 300' / minute	Up to 350' / minute
Line Size & Type (required)	1/2" Powerwinch Premium Medium Lay Nylon	1/2" Powerwinch Premium Medium Lay Nylon	1/2" Powerwinch Premium Medium Lay Nylon	5/8" Powerwinch Premium Medium Lay Nylon	5/8" Powerwinch Premium Medium Lay Nylon
Chain Size & Type (required)	1/4" Hi-test ACCO G4	1/4" Hi-test ACCO G4	1/4" Hi-test ACCO G4	5/16" Hi-test ACCO G4	5/16" Hi-test ACCO G4
Rodes (sold separately)	P10293-P10296	P10293-P10296	P10293-P10296	P10297-P10300	P10297-P10300
Rope & Chain System	Metal Alloy	Stainless Steel	Electro-Plated Stainless Steel	Electro-Plated Stainless Steel	Electro-Plated Stainless Steel
Replaceable Rode-Glide	Engineered Resin	Engineered Resin	Engineered Resin	Engineered Resin	Engineered Resin
Helm Operated Control Switch	Rocker	Rocker	Rocker	Rocker	Rocker
Avg. Amp Draw (during retrieval)	8-10 amps	8-12 amps	8-12 amps	10-14 amps	14-18 amps
Install Kit	P55800	P55800	P55800	P55600	P55600
Required Wire Size to Battery	8 gauge (50' run) 6 gauge (over 50' run)	8 gauge (50' run) 6 gauge (over 50' run)	8 gauge (50' run) 6 gauge (over 50' run)	6 gauge (70' run)	6 gauge (70' run)
Standard Equipped Thermal Circuit Breaker	25 amp auto reset	25 amp auto reset	25 amp auto reset	25 amp auto reset	60 amp auto reset
Manual Reset Circuit Breaker (optional)	Optional 25 amp P1070400AJ	Optional 25 amp P1070400AJ	Optional 25 amp P1070400AJ	Optional 25 amp P1070400AJ	P1064800AJ
Dual Switch Solenoid	Optional P1028200AJ	Optional P1028200AJ	Optional P1028200AJ	Optional P1028200AJ	Included
Unit Weight (lbs)	21	22	22	23	24
Overall unit Dimensions	10-9/16" L x 7" W x 6-5/16" H	10-9/16" L x 7" W x 6-5/16" H	10-9/16" L x 7" W x 6-5/16" H	10-9/16" L x 7" W x 6-5/16" H	10-9/16" L x 7" W x 6-5/16" H
Warranty	2 years	2 years	3 years	3 years	3 years
