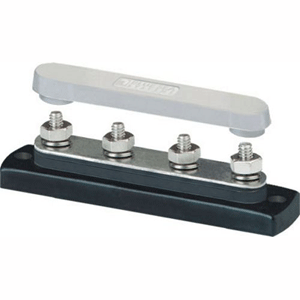

Blue Sea 2315 MiniBus 100 Ampere Common BusBar 4 x 10-32 Stud Terminal with Cover
Blue Sea 2315 MiniBus 100 Ampere Common BusBar 4 x 10-32 Stud Terminal with Cover

Brand New with Factory's Warranty
List Price: US$30.03
Our Price: US$20.46
You save US$9.57!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C28236

Description Extended Information

MiniBus 100 Ampere Common BusBar 4 x 10-32 Stud Terminal with Cover

PN: 2315

  • Great for limited space applications in electronics cabinets and under dashboards
  • Snap on insulating cover attaches to studs and allows unobstructed wire access
  • Raised bus provides easy access to multiple wires on a single screw
  • Pressed on busbar eliminates the need for a securing nut
  • Stainless steel studs allow high torquing for excellent electrical contact
  • Tin-plated copper bus for maximum conductivity and corrosion resistance
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
  • Captive star type lock washers meet CE requirements for anti-rotation and eliminate handling of small, easily dropped parts
    =
  • Stainless steel Phillips screws for easier installation and resistance to stripping
  • UL 94-VO rated base material resists high heat


Continuous Amperage 100 Amperes AC/DC
Maximum Voltage Rating 300 Volts AC/48 Volts DC
Bus Material Tin-Plated Copper CDA 110/UNS11000
Base Material Reinforced Polycarbonate
Cover Material Clear Polycarbonate
Weight 0.17 Lb
