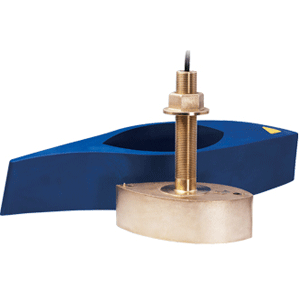

Simrad B265LH 1kW CHIRP Transducer
Simrad B265LH 1kW CHIRP Transducer

Brand New with Factory's Warranty
List Price: US$2,025.00
Our Price: US$1,499.00
You save US$526.00!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C43360

Description Extended Information


1 kW

We know that specific frequencies excel at detecting certain species of fish: Bluefin Tuna—60 kHz, squid—133 kHz, and cod—175 kHz. The B265LH transducer includes all these frequencies plus every other frequency in the high and low bandwidths. This powerhouse delivers excellent resolution, bottom discrimination, and bait and game-fish separation at all depths.

Airmar’s B265LH is packed with a seven-element, low-frequency array that operates between 42 and 65 kHz for excellent deep-water performance. The high-frequency ceramic operates between 130 and 210 kHz with a narrow, 10° to 6°, beam—perfect for picking apart structure and pinpointing tight-holding fish in structure.

The included High-performance Fairing improves broadband performance at speeds over 30 knots (34 MPH).

  • Depth and fast-response water-temperature sensing
  • 1 kW of power for great deep-water performance
  • Low frequency: 42 to 65 kHz
    • 25° to 16° beamwidth
    • Maximum depth of 914 m (3000')
  • High frequency: 130 to 210 kHz
    • 10° to 6° beamwidth
    • Maximum depth of 304 m (1000')
  • 103 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • Bronze housing with High-performance Fairing for optimal high-speed performance
  • Also available as transom (TM265LH), pocket (PM265LH), cavity/welded-tank (CM265LH), and in-hull (M265LH) mounts
  • Patented Xducer ID® technology



Brand: Airmar Technology
Acoustic Window: Urethane
Cable-Length: 9 m (30')
Common Use: Fishing, Commercial Fishing
Country of Origin: USA
Deadrise Range: Up to 28° with fairing
Display Connector: Cable Required
Frequency Band: Low-High
Functions: Depth, Temperature
High Frequency: 130-210 kHz
High Frequency Beamwidth: 10°-6°
Hole Size: 30 mm (1-3/16")
Hull Material: Fiberglass or wood
Low Frequency: 42-65 kHz
Low Frequency Beamwidth: 25°-16°
Material: Bronze
Max Deadrise: Up to 20° with fairing
Max Deadrise Angle: 20°
Max Depth: Low frequency- 914 m (3000'), High frequency- 304 m (1000')
Max Vessel LOA: 8 m (25') and above
Mix and Match Series: 12-Pin Chirp
Mounting Style: Thru-Hull with Fairing
Power Rating: 1 kW
Sensor Connector: MMC
Single or Dual Frequency: CHIRP-Ready Dual-Band
Tilted Element: No
Usable Shaft Length: 121 mm (4.75")
Weight: 7.3 kg (16 lb.)
Acoustic DataL: 42-65A H: 130-210C
BrochureThru-Hull Chirp Transducers
DimensionsD-92-201-02
DimensionsD-18033
InstallationD-19070
InstallationD-17-008-05
InstallationD-17-276-01
InstallationD-17-280-03
InstallationD-17-573-01
InstallationHigh-Performance-Fairing-17-276-01-English
InstallationHigh-Performance-Fairing-17-276-01-French
InstallationHigh-Performance-Fairing-17-276-01-Italian
InstallationHigh-Performance-Fairing-17-276-01-Spanish
Installation17-008-05-French
Installation17-008-05-Italian
Installation17-008-05-Spanish
WiringD-20619
WiringD-91-1321
