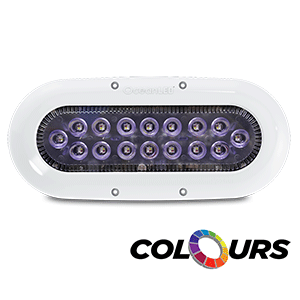

OceanLED X-Series X16, Colours LEDs 012311C
OceanLED X-Series X16, Colours LEDs 012311C

Brand New with Factory's Warranty
List Price: US$1,199.00
Our Price: US$439.00
You save US$760.00!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C64274

Description Extended Information


Overview

With a wide choice of sizes and colours, the Xtreme Series offers a range of mounting and colour options to help create your perfect light show and enjoy more time on the water.

Features

  •  60° Top Beam Angle
  •  Up to 4500 Fixture Lumens
  •  60° Side Beam Angle
  •  Circular Beam
  • Compact and simple design
  • Simple to install
  • Easy to clean
  • Fish-Strobe Mode
  • Active Thermal Control

Technical

Lumens 5800
Fixture Lumens 4500
Typical LED life expectancy 40,000+ Hours
Minimum-Maximum operating voltage DC 9-32V DC
Current / Amp draw (DC) (Amperage draw for Colours models vary by colour selected, this is the maximum) 12V DC 3.2A / 24V DC 1.5A
Approx. light penetration (avg. water quality) 40’ (12m)
Approx. Light penetration (perfect water quality) up to 100’ (30+m)
Driver type Internal

Mounting Recommendations

Boat size up to 30’ (9m)
Transom / Hull spacing 2-3’ (0.5-1m)
Transom quantity 2-6
Installation depth (to top of fixture) 4-8” (10-20cm)

Physical

Total weight 860g (1.90lbs)
Extension cable length (standard) 9.84’ (3m)
Hole cut-out for cable entry 0.5” (12.5mm)
Material Chemically resistant optical polymer
