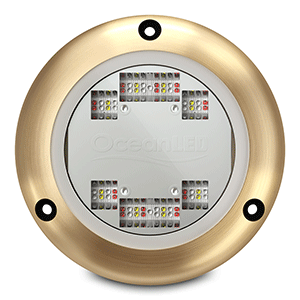

OceanLED Sport S3166s Multi-Color Surface Mount Underwater LED Light

Home > Electronics > Marine Instruments > Underwater Light > OceanLED Underwater Light >

Brand New with Factory's Warranty

List Price: US$749.00

Our Price: US$579.00

You save US$170.00!

Availability:: Usually ships the next business day
Product Code: C68736

Description

Extended Information

Overview

The OceanLED Sport series is the perfect choice for fishing and cruising in small to medium sized boats.

Advanced Optics

Narrower focused side beam angle providing greater water penetration.
True 90˚ beam angle with no fading at the edge gives better illumination

Advanced Optics

Exceptionally bright and randomised strobing of the light is proven to attract more fish and catch more bait.

90˚/20˚ Beam Angle - A true wide-angled, focused beam lights up a large area of the water.

Simple to install with a 12.5mm hole in the hull to feed the cable through and 3 screws in place. No bonding required.

Up To 3,500 Fixture Lumens
90° Top Beam
Rectangular Beam
20° Side Beam
Full RGBW Multi-Colour
Compact and simple design
Narrower focused side beam angle providing greater water penetration.
True 90˚ beam angle with no fading at the edge gives better illumination.
Simple to install
Easy to clean
Fish-Strobe Mode
Active Thermal Control

Technical

Lumens	8448
Fixture Lumens	3500
Typical LED life expectancy	40,000+ Hours
Minimum-Maximum operating voltage DC	9-32V DC
Current / Amp draw (DC)	12V DC 5.5A / 24V DC 2.4A
Driver type	Internal, Reverse Polarity Protected

Mounting Recommendations

Boat size	Up to 65’ (20m)
Transom / Hull spacing	2-4’ (0.5-1.2m)
Transom quantity	2-6
Installation depth (To top of fixture)	8-10” (20-25cm)

Physical

Total weight	700g
Extension cable length (standard)	9.84’ (3m)
Hole cut-out for cable entry	0.5” (12.5mm)
Material	AB2 Aluminium Bronze

Accessories

4 Way V DC Power Junction Box

019901
