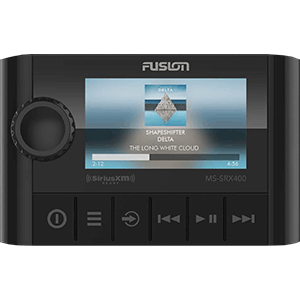

Apollo MS-SRX400 Stereo w/AM/FM/BT - Single Zone w/DSP

If you want to build a cutting-edge multi-zone audio system on your boat, Fusion's Apollo Series has everything you need.  Start with a Fusion MS-RA770 or MS-RA670 touchscreen marine receiver, then add one or more of these MS-SRX400 zone receivers in other zones on your boat. You can sync up all the music on the boat with Fusion's PartyBus™ feature, or use each MS-SRX400 as an individual entertainment source.  You can use its built-in amp to power stereo speakers in your zone, or use the preamp outputs to add amps to power the speakers and a subwoofer.

Digital Signal Processing (DSP) A technically superior listening experience made simple, Fusion's DSP produces superior sound quality in every environment. Precisely calculated loudness curves optimized for the human ear ensure quality, full range audio at every volume level, while the feed-forward limiter anticipates a peak in the audio and adjusts the gain to make distortion, a thing of the past. Using environmental information and acoustically designed Fusion speaker profiles, you can now achieve customized, optimized audio for any area of your boat, resulting in an entertainment system that is perfectly tuned for premium audio reproduction, and programmed to protect your system season after season.

PartyBus™ Network Enjoy the freedom of musical choice with the Apollo Series and Fusion's PartyBus-Network. We have introduced a new intuitive user experience allowing for easy navigation of your entire boat's audio network, making control of your audio and sources a seamless experience.  Key functionalities include - Stereo grouping, volume control, power options and home zone technology.

Wi-Fi Audio Streaming  In a marine industry-first, high quality on-board audio streaming is now available via Wi-Fi with the Apollo Series.  Wi-Fi streaming provides a higher data transfer rate in comparison with Bluetooth, for higher quality audio reproduction.  Enjoy perfectly synced music throughout your vessel by wirelessly connecting multiple stereos via a PartyBus-Network.

Fusion-Link™ Makes control of your stereo easier than ever.  Quickly find your favorite song, tune in to the sports or turn up the volume all from your partnered multifunction display (MFD), compatible smartphone, Garmin Handheld or Garmin watch.  With the app installed, you can enjoy source navigation and track selection from wherever you are on your boat.

Over-The-Air Software Updates  Over-the-air software updates available from your smartphone or compatible device via the free Fusion-Link app.

Features:

• Marine digital media receiver with built-in Wi-Fi and Bluetooth
• 2.7" LCD color display
• Advanced Fusion DSP optimizes sound quality at all listening levels
• Works with iPod/iPhone, plus Android and Windows phones
• Class D amplifier technology conserves battery power
• PartyBus audio distribution technology

Technical Specifications:

• 1 Zone
  • 140 Watts peak power
  • Class D Amplifier
  • Language Interface - English, French, German, Spanish, Dutch, Italian
  • Dimensions (L/H/D) -  4-5/16" x 2-3/4" x 7/8"
  • Cutout Dimensions (H/D) - 2" x 3.9"

  • Display	2.7" color LCD display
    Sources	AM/FM / Bluetooth / Wi-Fi audio streaming / UPnP
    Digital Signal Processing (DSP)	Yes
    Speaker Presets (easy to tune)	Yes
    Fusion-Link Control (Wireless)	Yes
    PartyBus Technology	Yes (control media playback from Apollo RA770 when connected via Ethernet or Wi-Fi)
    Bluetooth Wireless Technology	Bluetooth audio streaming, music control (via devices compatible with A2DP/AVRCP 1.3 Bluetooth protocol)
    Wi-Fi	Yes
    Water Resistance (IPX Rating)	IPx7 (front panel)
    Internal Amplifier	Class-D
    Peak Power	140W max.
    Multi-Language User Interface	English, French, German, Spanish, Dutch, Italian
    Ethernet	One Ethernet port
    AM/FM radio	One Motorola antenna connector port
    RCA Pre-Out (Left, Right and Subwoofer)	Single zone
    Operating Voltage	+10.8 - 16V dc
    Line Out	1 (1 x L + R, requires external amplification)
    Subwoofer Out	1 x mono output (requires external amplification)
    Software Updates	Over-the-air updates via the Fusion-Link app



  Quick Guide	View (pdf)
  Owners Manual	View (pdf)
  Installation Guide	View (pdf)



In the Box:

• Stereo Head Unit
  • Mounting Hardware
  • Mounting Template
  • Power Wiring Harness
  • Aux/Line-out Harness
  • Documentation

*SiriusXM Promotion - Get 3 Free Months SiriusXM Streaming Service - LINK

*Cover not Included
