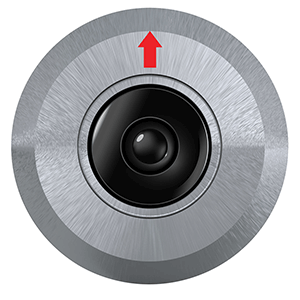

OceanLED Eyes HD Gen2 Ocean Camera NTSC - Stainless Steel Bezel 011811
OceanLED Eyes HD Gen2 Ocean Camera NTSC - Stainless Steel Bezel 011811

Brand New with Factory's Warranty
List Price US$975.00
Our Price: US$999.00


Free Shipping
Availability:: Usually ships the next business day
Product Code: C71228

Description Extended Information


Overview

View your own underwater aquarium in high definition.

Never miss the moment the fish strikes or when you’re lucky enough to have a pod of dolphins swimming with you. Cockpit mounting means you get a different view of the event or rest secure when you’re away from your boat.

Capture the magic of your own underwater aquarium

Tritonium™ optical lens is scratch and sea growth resistant.

Capture the magic beneath your boat in full 1080p High Definition video

  • Full 1080p HD Full 1080p HD
  • HD-SDI Output HD-SDI Output
  • 2.1 Megapixel 2.1 Megapixel
  • 35mm (1.38") Hole in Hull
  • 12V DC
  • Aluminium Bronze / Stainless Steel Bezel Options
  • Tritonium™ Optical Lens
  • Simple to install
  • Compact and simple design
  • No Breakable Parts

Technical

Minimum Illumination 0.1 LUX
Minimum-Maximum operating voltage DC 9-14V DC
Current / Amp draw (DC) 12V DC 110mA MAX
Effective Pixels 1984 (H) x 1105 (v)
H. Resolution 1080 TV Lines
Video Output HD-SDI / 1.0 Vp-p Composite ( 75Ω )
S/N Ratio More than 50dB
Electronic Iris (Auto) 1/50, 1/60 - 1/100,000 sec
Controllable Max Gain 23dB
Lens 3.7mm
Operating Temperature 14°F~112°F (-10°C~+50°C)

Mounting Recommendations

Maximum hull thickness 104mm (4”)

Physical

Overall Length 135mm (5 5/16”)
Diameter of Bezel 58mm (2 9/32”)
Total weight 65g (2.3oz)
Extension cable length (standard) 10m (30’)
Hole cut-out for body 35mm (1 3/8”)
Material Aluminium Hard Anodized Body; Aluminium Bronze AB2
Lens Tritonium™ Optical Lens

Accessories

EYES Delrin Sleeve (for metal hull installs) 001-500339
10M Extension cable for HD and NTSC 11807
20M Extension cable for HD and NTSC 11808
HDSDI to HDMI Converter 11809
