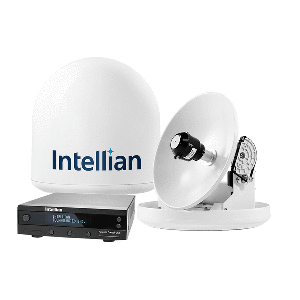

Intellian i2 US 13" with North Americas LNB B4-209SS
Intellian i2 US 13" with North Americas LNB B4-209SS

Brand New with Factory's Warranty
List Price: US$3,028.00
Our Price: US$2,059.00

Free Ground shipping to Lower 48 States
You save US$969.00!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C71697

Description Extended Information


No HD TV available on DirecTV service

Compact, Lightweight TV at sea. Compact and lightweight, the Intellian i2 delivers exceptional TV reception. Equipped with Intellian’s iQ² technologies, the i2 delivers stable, quiet, dependable performance and superior value in the smallest size antenna available.

Intellian i2


The i2 Highlights

Smaller size with better performance
Auto satellite switching function for three satellites
Compatible with leading satellite TV service providers around the world
60° per second turn rate ensures signal tracking at high speeds and in rough seas
Travel further North or South with an extended elevation range of 10° to 80°
Simplicity of design, no fragile compass and no rate sensors
Built-in HD module for Ku-band
Three year global warranty
High Performance

The Intellian i2 is the world's first high-performance, compact satellite TV system with an integrated HD module. This state-of-the-art functionality provides premium high-definition HD, when available, and standard SD programming broadcasts from satellite TV providers around the world.

Constant and Seamless Entertainment

With innovative, patented iQ² technologies, the i2 always maintains the highest signal strength available to ensure crystal-clear TV reception. Intellian's super-efficient 33cm (13 in) diameter antenna provides constant, seamless reception while the vessel is moored, at anchor, or cruising offshore. Connecting a GPS to the i2 allows it to lock onto a signal even faster, while boats with conventional antennas are left watching “SEARCHING FOR SATELLITE” on their screen.

Automatic Satellite Switching
DISH Network (US) and Bell TV (Canada) users will benefit from using an Intellian MIM (Multi-Satellite Interface Module) . The Intellian MIM is required to facilitate automatic switching between satellites for these services, allowing boaters to enjoy changing channels with automatic satellite switching just like a home system. See the Intellian MIM product guide for further details.



i2 Features
Fully Automated System
  • Automatic Satellite Search and Identification Function
  • 2-axis Stabilization provides high speed tracking

High Performance Antenna

  • 33cm (13in) diameter, parabolic antenna for receiving Ku-Band satellite signals
  • Circular or linear polarization depending on region and LNB selected
  • Built-in HD module for Ku-band HD TV reception

iQ² Quick&Quiet? Technology

  • iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
  • The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
  • Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal tracking while eliminating intrusive background noise experienced with conventional antennas

Antenna Control Unit

  • Intuitive controls and digital satellite information display on the ACU
  • Automated updates and diagnostics via Aptus
  • Simple antenna status quick reference
Multiple Receiver Capability
  • Multiple receivers and TVs can be connected using a Multi-Switch or the Intellian MIM (Multi-Satellite Interface Module)
  • Using the MIM, a master receiver can be selected to control the target satellite
  • In North America, when using Dish Network or Bell TV, a MIM is required, enabling automatic satellite switching from your remote control just like at home

Built-in NMEA 0183 External GPS Interface

  • Standard NMEA Interface allowing a vessel owner to use a separate GPS system further reducing initial search time

Compact Size

  • 37cm (14.6 inch) antenna radome diameter
  • Very light antenna weighs less than 4.5 kg (10 pounds)

Three Year Global Warranty

  • Industry leading 3-year parts and workmanship guarantee with a 1-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
Owners Manual View (pdf)
Brochure View (pdf)
Installation Guide View (pdf)

PRODUCT MODELS

B4-209SS
i2 US/Canada System
B3-I2DN
i2 DISH Network Package for NA (w. MIM)
B3-I2DNSB
i2 DISH Network Package for NA (w. MIM + DISH Network HD Receiver)
B3-201SDT
i2 DirectTV SD Ku-band only Package for NA (w. DirectTV Receiver)

PHYSICAL

Radome Height
38 cm (15.0 inch)
Radome Diameter
37 cm (14.6 inch)
Reflector Diameter
33 cm (13.0 inch)
Weight
4.5 kg (9.5 lbs)
Operating Temp. Range
-15°C ~ 55°C (5°F to ~ 130°F)
Storage Temp. Range
-25°C ~ 70°C (-13°F ~ 158°F)
Water Ingress
IPX6

PERFORMANCE

Reception Frequency
Ku-Band : 10.7 ~ 12.75 GHz
Polarization
Vertical / Horizontal
Minimum EIRP
51 dBW
Azimuth Range
680°
Elevation Range
10° ~ 80°
Ship's Motion
Roll ±25°, Pitch ±15°
Roll & Pitch Response Rate
60° / sec
Turn Rate
60° / sec
RF Output
Dual Output

ANTENNA CONTROL UNIT

Dimensions (W × D × H)
17.8 cm × 21.7 cm × 5.4 cm (7.0 inch × 8.5 inch × 2.1 inch)
Weight
1.2 kg (2.6 lbs)
Display
2 line 20 character VFD module
Power Input
9.0~30.0V DC (Typ. 30W, max 50W)
GPS Interface
Built-In (NMEA 0183 GPS)
Technical specifications 1
What's in the box?
All Satellite Systems include the following parts as standard
  • Antenna & Radome 33 cm (13 inch) Reflector & LNB
  • ACU (Antenna Control Unit)
  • PC Controller Program (Software CD included)
  • Installation & Operation Manual
  • Mounting Template
  • Quick Installation Guide
Installation Kit
  • ACU Table Mounting Bracket × 2EA
  • 15 m (49) ft × 1EA Antenna-ACU RG6 Coaxial Cable
  • 3 m (10 ft) × 1EA ACU-IRD RG6 Coaxial Cable
  • 10 m (33 ft) × 1EA DC Power Cable
  • 1.8 m (6 ft) × 1EA PC Serial Cable
  • Connectors & Screws
