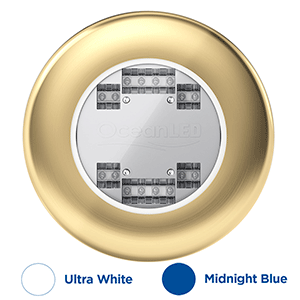

OceanLED Explore E3 XFM Ultra Underwater Light - Ultra White/Midnight Blue E3009BW

Home > Electronics > Marine Instruments > Underwater Light > OceanLED Underwater Light >

Brand New with Factory's Warranty

List Price: US$1,750.00

Our Price: US$1,439.00
Free Ground shipping to Lower 48 States

You save US$311.00!

Availability:: Usually ships the next business day
Product Code: C75698

Description

Extended Information

The Explore E3 has the most advanced optics available on the market.

The Explore E3 packs a powerful 5,000* fixture lumens into a low profile, Xchangeable Flush Mount body with Midnight Blue, Ultra White, Dual Blue/White and RGBW light options.

Advanced Optics

New generation innovative, efficient reflector optic.
20˚ side beam produces a blade of light under the water that penetrates further.
A true 90° wide-angled, focused top beam lights up a large area of water, flooding it with light.

Technologically Advanced and Super Efficient

The mix of optic / electronics / form factor / built in driver / plug and play work together to make the most advanced underwater light series available in the market.

Reduced Installation Time

All aspects of the design including the clamping kit make installation quicker and simpler.

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.

A true wide-angled, focused beam lights up a large area of water, flooding it with light.

The compact size and built in driver mean less space is required inside the vessel, allowing installation in tight areas.

Exceptionally bright, randomised strobing of the light is proven to attract more bait and catch more fish.

Features

90° Top Beam
Up to 5,000 Fixture Lumens*
20° Side Beam
Rectangular Beam
Advanced, new generation optics.
Compact design and built in driver.
Reduced installation time.
Simple toggle control.
Fish strobe mode.
Ultra low profile outer bezel.
Same light output as Sport Series.
Explore E3 XFM Spec Sheet

Technical

Lumens (Single Colour)	10,000
Lumens (Dual Colour)	5,600
Lumens (Colour Scroll)	8,500
Fixture Lumens (Single Colour)	5,000*
Fixture Lumens (Dual Colour)	3,500*
Fixture Lumens (Colour Scroll)	3,000*
Min-Max Operating voltage DC	9-32V DC
Current / Amp draw Single Colour (12V DC / 24V DC)	5.5A / 2.4A
Current / Amp draw Dual Colour (12V DC / 24V DC)	3.6A / 1.7A
Current / Amp draw Colour Scroll (12V DC / 24V DC)	5.5A / 2.4A
Min-Max Operating voltage AC (Optional)	100V - 240V AC
Current / Amp draw Single Colour (110V AC / 230V AC)	620mA / 290mA
Current / Amp draw Dual Colour (110V AC / 230V AC)	430mA / 210mA
Current / Amp draw Colour Scroll (110V AC / 230V AC)	620mA / 290mA
Driver type	Internal
*	Fixture Lumens rating is a measurement of total white light output from a complete (as sold) light fixture using laboratory standard, calibrated photometric measuring equipment.

Mounting Recommendations

Boat size	0-10m
Transom / Hull spacing	0.5-1.2m (2-4’)
Installation depth below waterline	25-30cm (10-12”)

Physical

Total weight	1.2kg (2.65lbs)
Total Diameter (Including Flange)	105mm (4.13”)
Diameter Of Body	80mm (3.15”)
Profile Of Fixture	4mm (0.16”)
Length	97mm (3..8”)
Minimum Space Required Inside The Hull	170mm (6.55”)
Hole Cut-Out	83mm (3.25”)
Material (Mounting Tube)	AB2 Aluminium Bronze
Material (Light Body)	Aluminium

Quick Guide	View (pdf)
Brochure	View (pdf)
