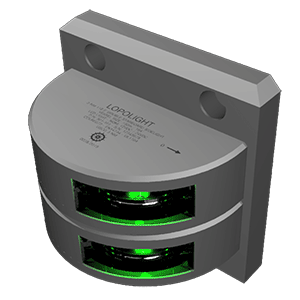

Double Green Starboard SideLight - 3nm - Silver Housing - Vertical Mount

This LED navigation light consists of a double high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.

The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.

The interior is completely filled with a special potting resin making it water- and vibration proof.

Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.

Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards:

• COLREG72
• EN14744
• IEC 60945
• USCG (UL1104)

Specifications:

• Materials: Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
• Supply Voltage: 10.0 – 32.0 VDC
• Power Consumption: 1,0 WattCurrent @ 12 VDC: 0,08 A: Current @ 24 VDC: 0,04 A
• Light Colors: Green
• Intensity: >1.2 CD
• Visibility: 3nm
• Number of LED's: 1
• Vessel Size: 12 meter (39.4 feet)
• Mounting: Vertical
