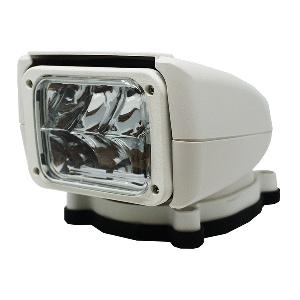

ACR RCL-85 LED Searchlight with Wireless Remote Control - 12/24V, 1956
ACR RCL-85 LED Searchlight with Wireless Remote Control - 12/24V, 1956

Brand New with Factory's Warranty
List Price: US$527.95
Our Price: US$499.95

Free Ground shipping to Lower 48 States

You save US$28.00!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C79109

Select Color

Black
White

Description Extended Information


Remote Controlled LED Searchlight

The all new RCL-85 LED searchlight was designed for the boater who wants to ditch the hassle of halogen searchlights, but still wants their affordability. With an impressive 240,000 candelas using 6 High Flux (30W) LEDs, you have visibility over ½ of a nautical mile to light the way to your destination. The simple installation only requires running your 12 to 24 volt power to the searchlight, all operations are completely wireless.

The RCL-85 LED’s sleek design makes it an attractive and cost-effective choice for small to medium sized recreational powerboats as well as light commercial vessels. This searchlight comes with a wireless handheld remote to rotate the light 350 degrees. With an 8 degree beam angle, the light can tilt an impressive 90 degrees to make lighting draw bridges, buoys and docks a breeze. Need to get some assistance, use the Strobe function to signal for help. The RCL-85 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.

Key Features:

  • 6 High Flux LEDs (OSRAM)
  • 240,000 Candela, Max Beam Distance 3,215 Feet (980 m)
  • Wireless Handheld Remote (Included)
  • 350o Rotation and 90 o Tilt
  • 2 Amps (12V) to 1.1 Amps (24V)
  • Efficient, long life LED’s - 50,000 operating hours
  • UV & Weather Resistant
  • Simple Installation (12-24V Power Connection Only)
  • This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

WARRANTY LENGTH: 2 YEARS

This product is warranted against factory defect in material and workmanship for a period of 2 (two)* years from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.

ACR Product Number

PN 1956 (White) / PN 1957 (Black)

Size

5.5 x 6.3 x 7.7” (14 x 16 x 19.5 cm)

Weight

3.1 lbs (1.34 kg) (searchlight only)

Material

Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance

Color

White or Black

Operation

Remote controlled wireless handheld remote (included) / 433.92 MHz

Peak Beam Candle Power

240,000

Beam Maximum Distance

3,215 Feet (980 Meters)

Beam Pattern / Angle

Spot / 8o

Elevation Angle

90°

Rotation

350°

Rotation Speed

18o per second

Elevation Speed

13° per second

Lamp

LED 30W (OSRAM x 6) / 50,000 hour life

IP Rating

IP 56 (Housing) / IP 68 (LED Module)

Accessories

Wireless Dash Mount Remote (PN 9635)

Footprint Diameter

5.03” x 4.09” (12.8 x 10.4 cm)

Power Requirements

12 or 24 V DC

Warranty

2 Years

Patents

9,212,813 & 9,890,923

Owners Manual View (pdf)
Brochure View (pdf)
Installation Guide View (pdf)
