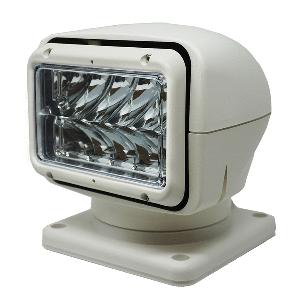

ACR RCL-95 LED Searchlight with Wired/Wireless Remote Control - 12/24V, 1958
ACR RCL-95 LED Searchlight with Wired/Wireless Remote Control - 12/24V, 1958

Brand New with Factory's Warranty
List Price: US$692.95
Our Price: US$649.95

Free Ground shipping to Lower 48 States

You save US$43.00!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C79111

Select Color

Black
White

Description Extended Information


Remote Controlled LED Searchlight

The all new RCL-95 LED searchlight was designed for performance and simplicity. With an industry best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination. The RCL-95 LED’s sleek design makes it an attractive and cost-effective choice for small to medium sized recreational powerboats as well as light commercial vessels.

Use the RCL-95 LED searchlight with either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With an 8 degree beam angle, the light can tilt an impressive 135 degrees to make lighting draw bridges, buoys and docks a breeze. The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off. The RCL-95 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.

Key Features:

  • 10 High Flux LEDs (OSRAM)
  • 460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m)
  • Wireless Handheld Remote and Wired Dash Mount Joystick (Both Included)
  • 360o Continuous Rotation and 135 o Tilt
  • Auto-home return when off
  • 4 Amps (12V) to 2 Amps (24V)
  • Efficient, long life LED’s - 50,000 operating hours
  • UV & Weather Resistant
  • Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)
  • This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

WARRANTY LENGTH: 2 YEARS

This product is warranted against factory defect in material and workmanship for a period of 2 (two)* years from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or at its option, replace at no cost to you for labor, materials or return transportation.

ACR Product Number

PN 1958 (White) / PN 1959 (Black)

Size

5.9 x 7.1 x 7.5" (15 x 18 x 19 cm)

Weight

4.2 lbs (1.9 kg) (searchlight only)

Material

Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance

Color

White or Black

Operation

Wireless Handheld Remote (included) / 433.92 MHz or

Wired Dash Mount Joystick (included with 16.4’ (5m) cable)

Peak Beam Candle Power

460,000

Beam Maximum Distance

4,501 ft (1,372 meters)

Beam Pattern / Angle

Spot / 8o

Elevation Angle

135°

Rotation

360° Continuous

Rotation Speed

Fast 19° per second, slow 12° per second

Elevation Speed

11° per second

Lamp

LED 50W (OSRAM x 10) / 50,000 hour life

IP Rating

IP 56 (Housing) / IP 68 (LED Module)

Accessories

Wireless Dash Mount Remote (PN 9635)

16.4’ (5 m) Extension Cable for Wired Controller (PN 9638)

Replacement GOLIGHT® Mounting Plate (PN 9639) – Used when replacing GOLIGHT ® Stryker or RadioRay Searchlights (will not work for RadioRay portable model)*

Footprint Diameter (distance between mounting holes)

4.92” x 4.92” (12.5 x 12.5 cm)

Total Footprint (dimensions of searchlight base)

6.06” x 6.06” (15.4 x 15.4 cm)

Power Requirements

12 or 24 V DC

Warranty

2 Years

Patents

D752,267 / 9,249,960 / 9,890,923 / 10,012,369

Approvals

FCC / CE / R10

Owners Manual View (pdf)
Brochure View (pdf)
Installation Guide View (pdf)
