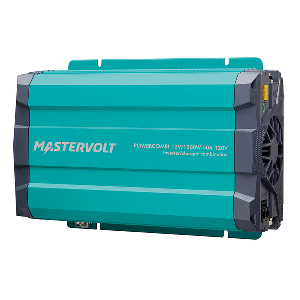

Mastervolt PowerCombi 12V - 1200W - 50 Amp (120V) Pure Sinewave Inverter Charger 36211200
Mastervolt PowerCombi 12V - 1200W - 50 Amp (120V) Pure Sinewave Inverter Charger 36211200

Brand New with Factory's Warranty
List Price: US$827.00
Our Price: US$689.00
You save US$138.00!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C80144

Description Extended Information


PowerCombi 12/1200-50



Simple. Independent. Flexible.

The PowerCombi is a pure sine wave inverter/charger offering grid quality AC power and battery charging in one low profile design. Designed to be an independent inverter / charger, it yet can easily be integrated into a MasterBus network (with additional interface).

With a built-in transfer switch, 2x surge for 3 seconds and on-site dipswitch programming—the PowerCombi offers simple installation with multiple operating modes, and can charge various battery chemistries—including a custom profile for use with Li-ion.

Full certifications make it perfect for use in RV's, boats, and specialty vehicles. Add a battery temperature sensor (BTS), remote display and a communication interface for custom applications.

Owners Manual
View (pdf)



Specifications


Specifications battery charger
Input voltage range 10 – 15.5 V
Nominal input voltage 12 V
Max. charge current at 25 °C / 77 °F 50 A DC

Specifications transfer system
Transfer speed 30 A (10ms)

Communication & monitoring
Communication MasterBus compatible via PowerCombi MasterBus Interface (part # 77032900)

General specifications
Flat battery support (minimum charging) no (6 V)
Continuous power at 25 °C / 77 °F, cos phi 1 1200 W
Continuous power at 50 °C / 122 °F, cos phi 1 1200 W
Surge power (3s) 2400 W
AC voltage / frequency 120 V – 50/60 Hz selectable HF - pure
Idle consumption 25 W
Dimensions, hxwxd 386 x 251 x 116 mm
15.2 x 9.9 x 4.6 inch
Weight 4.55 kg
10.0 lb
Approvals UL458 & Supplement SA/CSA C22.2, UL 1741 no. 107.1-01KKK-A-1822F (pending, specifications subject to change)

Technical specifications
Battery types flooded, Gel, AGM, custom
Temperature range (ambient temp.) -20 °C to 60 °C
-4 °F to 140 °F
