Furuno 165T/275LHW-12P Pocket Mount Combo Transducer for DFF3D & TZT3 Displays
Furuno 165T/275LHW-12P Pocket Mount Combo Transducer for DFF3D & TZT3 Displays

Brand New with Factory's Warranty
List Price: US$3,700.00
Our Price: US$3,499.00

Free Ground shipping to Lower 48 States

You save US$201.00!


Free Shipping
Availability:: Contact us for availability
Product Code: C86476

Description Extended Information

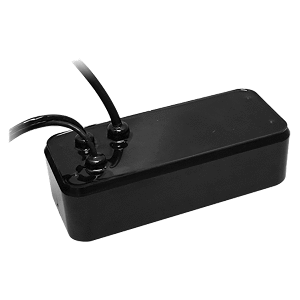

Pocket Mount Combo Wide Beam Transducer for DFF3D (12 Pin)

Beam Angle120 Degrees and 25 x 16 Degrees and 25 Degrees

Frequency165 kHz and CHIRP 42-65 kHz and 150-250 kHz

Housing TypeUrethane

Install TypeIn Hull

Power Rating1 kW

















This is a new size housing (12 LX 5 W X 3.5 H) that contains DFF3D elements along with CHIRP elements.



Standard Features

  • DFF3D operating frequency 165 kHz
  • Low—CHIRPS from 42 kHz to 65 kHz, Beamwidth 25° to 16°
  • High—CHIRPS from 150 kHz to 250 kHz, Beamwidth 25°
  • 12M Cables. Pigtail cable for DFF1-UHD, 7 pin connector and 12 pin connector for DFF3D
  • Recommended for a DFF1-UHD and DFF3D installation
  • Built-in motion sensor
  • Built in temp sensor





Note: The price is subject to change at any time without any notice. Not responsible for any typographical errors. Any products can be cancelled from sale at any time.
  • All products sold here come with Full Manufacturer's Warranty
