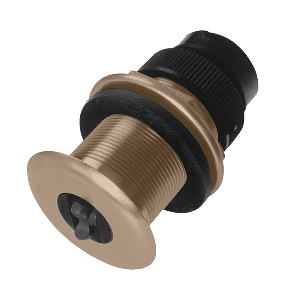

DST-810MSF Bronze Thru-Hull, Digital Depth, Speed, Temp Sensor, NMEA2000

Airmar B617V Housing Style Transducer

The DST-801MSF offers depth, speed, and temperature in a single, 51 mm (2”)
fitting. Only one hole through the hull simplifies the installation — an
attractive feature for boat builders and boat owners alike. Patented,
speed-signal-processing and upgraded 5 Hz (5X per second) speed-through-water
enhancements provide excellent paddlewheel accuracy below 5 knots (6 MPH) and
smooth linear output at all vessel speeds. The transducer’s wide, fan-shaped,
fore-aft beam is able to find bottom even when installed on steep deadrise hulls
or heeling sailboats. You also get true water-temperature readings with the
DST-810MSF's reliable temperature sensor.

The DST-810MSF features a new Wireless connectivity to Airmar's CAST App,
allowing you to calibrate the sensor, add depth offsets, and more.

Features:


•
   Depth, speed, and temperature in one compact bronze housing


•
   Fast-response temperature sensor provides ±0.2°C (±0.1°F) accuracy


•
   Weight: 1.6 kg (3.5 lb)


•
   Acoustic Window: Urethane Hull


•
   Deadrise: Up to 22°


•
   Data Update Rate: 1 per second


•
   Minimum Sounding Depth: 0.5 m (1.6’)


•
   Maximum Sounding Depth: 70 m (230’)


•
   Pressure Rating: 3 m (10’)


•
   Pulse Rate: 20,000 p/nm* (5.6 Hz per knot)—*p/nm = pulses per nautical mile


•
   Smart Sensor Supply Voltage at 100% Sound Power Output: 11.5 VDC to 25 VDC


•
   Supply Current: 40 mA


•
   Standard Cable Length: 6m


•
   NMEA 2000® Load Equivalency Number (LEN): 4
