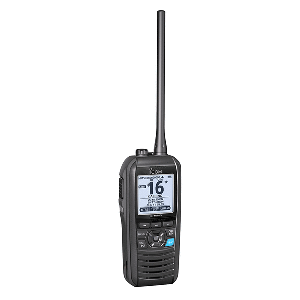

Icom M94D VHF Marine Radio with DSC & AIS
Icom M94D VHF Marine Radio with DSC & AIS

Brand New with Factory's Warranty
List Price: US$400.00
Our Price: US$349.95

Free Ground shipping to Lower 48 States
You save US$50.05!


Free Shipping
Availability:: Usually ships the next business day
Product Code: C87814

Description Extended Information


M94D VHF Marine Radio with DSC & AIS

Simplified AIS and DSC in One Package

The simplified AIS and DSC functions add further assurance for safety at sea. With the integrated AIS receiver, real-time AIS vessel traffic information are shown on the display. The AIS target call function allows you to easily set up a DSC individual call. Distress calls can be made with the rear panel button.

6W RF Output Power and 10 Hours of Operating Time

The IC-M94D’s 6 watts *1 of transmit power provides extended communication range for the user. Supplied 2400 mAh (typical) high capacity Li-ion battery, BP-306 provides 10 hours of operating time, under normal conditions *2.

*1 5 W for AUS version/*2 Approximate, typical operation with 5:5:90 duty ratio.

Class-Leading 1500 mW Audio Output

Icom’s custom high-power capacity speaker delivers a loud 1500 mW (typical) audio output with improved acoustic sound clarity for noisy maritime environments.

Simplified Navigation Function

The Navigation function guides you to a specified waypoint. You can assign a maximum of 50 favorite fishing spots or destinations as waypoints.

Float’n Flash and MOB Auto Set Functions

The radio floats with a flashing LED light to help you retrieve it from the water. Pressing the distress button while Float’n Flash is working will transmit the MOB distress signal, rather than the plain undesignated one for better protection of sailors.


Features:

  • Class-H DSC VHF marine handheld transceiver with simplified AIS
  • Built-in AIS and DSC combination adds further assurance for safety at sea
  • 6 W output power for reliable long-distance communication
  • Significantly increased audio output power to 1500 mW (crystal clear communications even in any maritime environment)
  • Icom common UI offers intuitive operation
  • Simplified navigation function to a specified waypoint or MOB waypoint
  • 11 hours (approx.) of long battery life with the supplied 2400 mAh (typ.) high capacity Li-ion battery pack
  • Float’ n Flash: The radio floats with a flashing red LED light for easier retrieval from the water
  • IPX7 waterproof construction
  • Integrated GPS

General

Frequency range Tx 156.025–157.425 MHz
Rx 156.050–163.275 MHz
Rx (CH70) 156.525 MHz
RX (AIS) 162.025 MHz
Usable channel groups INT, USA, CAN, WX channels
Type of emission 16K0G3E (FM), 16K0G2B (DSC), 16K0GXW (GMSK)
Current drain
(at 7.2 V DC)		 TX (6 W/1 W output) 1500 mA/700 mA (approx.)
RX (Inter SP/Exter SP Max. audio) 700 mA/350 mA (approx.)
Operating temperature range –20°C to +60°C; –4˚F to +140˚F
Antenna impedance 50 Ω
Dimensions (W×H×D)
(Projections not included)		 60.9 × 145.8 × 43.8 mm;
2.4 × 5.7 × 1.7 in
Weight (approximately) 357 g ; 12.6 oz
(With BP-306, antenna, MB-133)

Transmitter

Output power (Hi/Low) 6 W/1 W
Max. frequency deviation ±5 kHz
Frequency stability ±10 ppm
Spurious emissions –68 dBc typical

Receiver

Sensitivity (at 12 dB SINAD)
DSC receiver (at 1% BER)
AIS receiver (at 20% PER)		 0.25 μV typical
–3 dBμ emf typical
–107 dBm
Squelch sensitivity (Threshold) 0.25 μV typical
Adjacent channel selectivity
DSC receiver (at 1% BER)
AIS receiver (at 20% PER)		 70 dB typical
73 dBμ emf
50 dB typical
Spurious response
DSC receiver (at 1% BER)
AIS receiver (at 20% PER)		 70 dB typical
73 dBμ emf
50 dB typical
Intermodulation
DSC receiver (at 1% BER)
AIS receiver (at 20% PER)		 70 dB typical
68 dBμ emf
50 dB typical
Hum and noise 40 dB
Audio output power
(at 10% distortion)		 Internal SP 1500 mW typical (8 Ω load)
External SP 350 mW typical (8 Ω load)



Measurements made in accordance with TIA/EIA-603. All stated specifications are subject to change without notice or obligation.

Applicable U.S. Military Specifications & IP Rating

Standard
 		 MIL-810 G
Method Procedure
Low Pressure

500.5

I, II
High Temperature

501.5

I, II
Low Temperature

502.5

I, II
Temperature Shock

503.5

I-C
Solar Radiation

505.5

I
Rain Blowing/Drip

506.5

I, III
Humidity

507.5

II
Salt Fog

509.5

-
Dust Blowing

510.5

I
Immersion

512.5

I
Vibration

514.6

 I
Shock

516.6

I, IV



Also meets equivalent MIL-STD-810-C, -D, -E and -F.

Ingress Protection Standards
Water

IPX7 (Waterproof protection)



All stated specifications are subject to change without notice or obligation.
