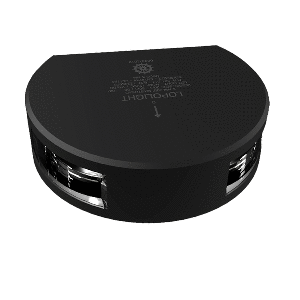

Masthead Light 5nm Horizontal Mount with 0.7M Cable - Black Housing

225° Masthead light, single, vertically mounted

Features:

• LED (Light Emitting Diode) navigation light
• The unique and precise definition of light angles
• Rugged and unbreakable: Precision machined anodized aluminum housing protects the LED’s and electronics
• Completely waterproof and vibration proof: Interior is fully filled and sealed with special potting resin
• Waterproof to IP 68+ (submersible)
• Low power consumption – 70 to 90% less than traditional navigation lights
• Full brightness with input voltages ranging from 10 to 32V
• All Lopolights have been tested several times during production, a total of more than 24 hours
• Easy to install, adaptor and screws included (when applicable)

Specifications:

• Light Colors: White 225°
• Supply Voltage: 10, 0 - 32, 0 VDC
• Intensity: >65cd
• Visibility: 5 nautical miles
• Materials: Black anodized aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
• Mounting: Vertical
• Vessel Size: 20 - 50 meters (65.6 - 164')

Certifications:

• U.S.C.G.
• EN14744
• COLREG72

In the Box:

• Navigation light w/0.75 meter cable
• Mounting hardware
• Installation guide

• Quick Guide	View (pdf)
  Installation Guide	View (pdf)
