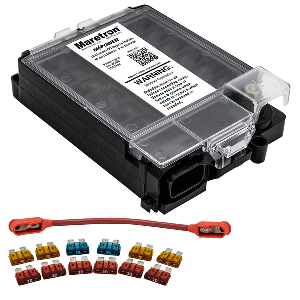

Maretron Bypass Module, 12 Circuit (NMEA 2000) with Fuse Pack & Jumper Wire

Home > Electronics > Marine Instruments > Maretron Accessories >

Brand New with Factory's Warranty

List Price: US$207.00

Our Price: US$189.99

You save US$17.01!

Availability:: Usually ships the next business day
Product Code: CBMD12-R

Description

When used in conjunction with the CLMD12, the bypass module provides manual switching control of the loads in case of system failures. It utilizes standard fuses for overcurrent protection and 12 Carling Curvette® rocker switches for manual control of each load. The maximum current capacity for the CBMD12 is 75 Amps in 12VDC and 24VDC power systems.

12V and 24V DC power systems
75 Amps maximum current capacity in 12VDC and 24VDC power systems
Two (2) outputs capable of carrying up to 12 Amps
Six (6) outputs capable of carrying up to 10A
Four (4) outputs capable of carrying up to 5 A
Overcurrent protection via ATC standard fuses
12 Carling Curvette® rocker switches for manual control of each load

BrochureCBMD12-R_Brochure

BrochureCLMD12-R_Brochure

CatalogMaretron-2020-catalog

CatalogMPower Catalog_2021
