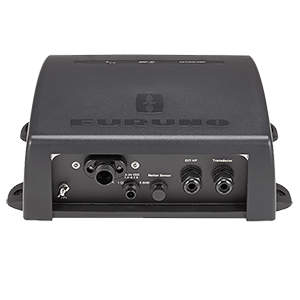

Furuno DFF3D Sonar Box for TZTouch or TZTouch2

Revolutionary 3D multi-beam sonar for deep and wide water columns

You may think you’ve seen 3D Multi-Beam Sonar in action, but many of those images begin disappearing as you approach 200 feet. Furuno’s DFF3D takes 3D Fish Finding to new depths. We’re talking depths of over 980 feet, with Side Scanning over 650 feet. See fish and bottom structure as you’ve never seen them before, at depths previously unfathomable. Now you can visibly see fish schools and the underwater landscape at great depths in amazing detail. The DFF3D turns your NavNet TZtouch or TZtouch2 MFD into a multi-beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time.

Instantly understand fish distribution at a glance

Cross section displays the real-time sea column echo in 120 degrees port and starboard. This mode aids in instantly understanding the distribution of bait fish and the water column condition, with a detection range of over 650 feet, depending on bottom, water and installation conditions.

Intuitive 3D Sounder History

The 3D sounder history provides an intuitive and easy to understand 3D image of the seafloor, along with fish school icons. This mode is useful in a variety of situations, such as selecting a fishing hot spot and assessing the seabed condition.

Better understand the depth of fish targets

A single (directly under boat) or triple direction (middle, left and right) fish finder image are displayed simultaneously. The Triple beam display helps to understand the depth of fish targets and the seabed condition in each direction, as well as the direction the target fish are moving. Each beam angle and beam width are selectable.

See the seafloor structure like never before

Side scan clearly displays the shape of structure as a high definition image in port and starboard direction. It is suitable for searching the seabed and understanding the sea floor structure. The sidebar detection range is over 650 feet in a 120-degree swath port to starboard, a distance you've never seen before!

Turn your NavNet TZtouch or TZtouch2 MFD into a multi-beam sonar that can see 120-degrees port to starboard, allowing you to see the depth and direction fish schools are moving, while displaying the seabed condition in real time. The new DFF3D gives you real-time 120 port-starboard view of the water column and seabed in over 650 feet. The DFF3D allows you to explore fishing spots and find fish in deep water far faster than conventional single beam sounders. The main beam penetrates right under the boat at a depth of over 1,000 feet, depending on water conditions. Installation is made easy thanks to a compact transducer design. The built-in motion sensor in the transducer stabilizes the display to give clear and stable images, even under rough sea conditions.

Cross-Section displays the real-time sea column echo in 120 degrees port and starboard. This mode aids in instantly understanding the distribution of bait fish and water column conditions.

The 3D Sounder History provides an intuitive and easy-to-understand 3D image of the seafloor, along with fish school icons. This mode is useful in a variety of situations, such as selecting fishing hotspots and assessing the seabed condition.

A single (directly under the boat) or triple-direction (middle, left and right) fish finder image can be displayed. The triple beam display helps to understand the depth of fish targets and the seabed condition in each direction, as well as the direction target fish are moving. Each beam angle and beam width are selectable.

Side scan clearly displays the shape of structure as a high definition image in port and starboard direction. It is suitable for searching the seabed and understanding sea floor structure.

Standard Features:
