Furuno DRS25ANXT/3 Solid State Radar 96nm with 3' Array

Home > Electronics > Marine Radar > Furuno Radar > Furuno Radar Antenna >

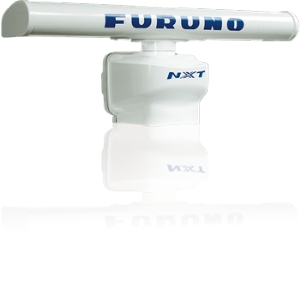

Furuno DRS25ANXT/3 Solid State Radar 96nm with 3' Array - 15M Cable

Brand New with Factory's Warranty

List Price: US$10,700.00

Our Price: US$9,070.00
Free Ground shipping to Lower 48 States

You save US$1,630.00!

Availability:: Usually ships the next business day
Product Code: DRS25ANXT3

Description

Extended Information

200 Watt Solid-State Doppler Radar with Target Analyzer and Fast Target Tracking, with 3.5' antenna

Antenna Size3.5 ft

Antenna TypeOpen Array

BandX-Band

Beam Width2.3 degrees

Power Usage12-24 VDC

Power Output200 W

The NXT step with doppler Radar technology

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

Target Analyzer function utilizing Doppler technology

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Fast Target Tracking

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

RezBoost Beam Sharpening

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

Specifications

DRS6A-NXT/DRS12A-NXT/DRS25A-NXT

DRS4D-NXT

ANTENNA

Type

Slotted waveguide array

Radome (24")

Vertical beam width

22°

25°

Horizontal beam width/ Rezboost Effective Horizontal Beam

2.3°/ 1.15° (XN10A)
1.9°/ 0.95° (XN12A)
1.4°/ 0.7° (XN13A)

3.9° (-3dB) / 2.0°

Antenna rotation speed

24/36/48 rpm range coupled or 24 rpm fixed

RADAR FUNCTION

Tx frequency

3 channel, auto/manual selectable

Ch #	P0N (MHz)	Q0N (MHz)
1	9380	9400
2	9400	9420
3	9420	9440

Output power

200 W (DRS25A-NXT)
100 W (DRS12A-NXT)
25 W

25 W

Pulselength & PRR

Range Scales (NM)

0.0625-96 (DRS12A-NXT/DRS25A-NXT)
0.0625-72 (DRS6A-NXT)

0.0625-48

Pulse length (P0N)

0.04-1.2

0.08-1.2

Pulse length (Q0N)

5-48

5-18

PRR (Hz)

700-2000

1100

Tx frequency (MHz)

9380-9440

Minimum range

10 m

20 m

Range resolution

10 m

20 m

Range accuracy

1% of range in use or 10 m, whichever is the greater

Bearing accuracy

±1°

INTERFACE

Number of ports

LAN: 1 port, Ethernet, 100Base-TX, RJ45

Data sentences

IEC61162-1/2

Input

GGA, GLL, GNS, HDG, HDM, HDT, RMA, RMC, THS, VHW, VTG

POWER SUPPLY

12/24 VDC: 9.5/5.0 A max.

12-24 VDC: 2.5-1.3 A

ENVIRONMENT

Temperature

-25°C to +55°C, Waterproofing: IP56

EQUIPMENT

Standard

Scanner Unit (RSB-137-119), Radiator, Installation Materials, Spare Parts

Radar Sensor (RSB-135-115), Installation Materials, Spare Parts

Option

LAN cable 2/5/10 m, Joint Box (TL-CAT-012)

Radome Mount (OP03-208), (OP03-239)LAN cable 2/5/10 m, Joint Box (TL-CAT-012)

Antenna Unit

3.5 ft Open Array NXT Radar 22kg 48.5 lb
4 ft Open Array NXT Radar 25kg 55.1 lb
6 ft Open Array NXT Radar 27kg 59.5 lb

DRS4D-NXT

7.3 kg 16.1 lb

Interconnection Diagram

DRS4D-NXT Interconnection Diagram

MFD version compatibility
DRS25A-NXT/DRS12A-NXT: TZtouch 2 V 6.21 or Later. TZtouch V 6.01 or later
DRS6A-NXT: TZtouch 2 and TZtouch V 5.01 or later.
DRS4D-NXT: TZtouch 2 V3.01 or later. TZtouch V4.21 or later.

Documents

Manuals

DRS6ANXT 12ANXT 25ANXT Installation Manual (4.010 MB) pdf

DRSxA-NXT Specifications (53.495 KB) pdf

Packing Lists

Packing List DRS25ANXT (90.866 KB) pdf

Packing List XN10A-3.5 (66.974 KB) pdf

Technical Info

Exploded Parts Views

DRS12ANXT DRS25ANXT RSB137 RTR125 RTR126 Exploded View (1.853 MB) pdf

Interfacing and Installation

XN10A-3.5 Materials (90.303 KB) pdf
