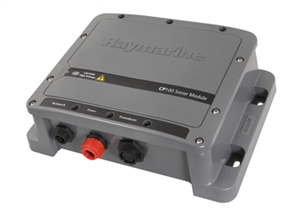

Raymarine CP100 CHIRP DownVision Sonar Module E70204

Home > Fishfinder & Sonar > Raymarine Fishfinder > Raymarine Sonar Blackbox >

Alternative Views:

Brand New with Factory's Warranty

List Price: US$579.99

Our Price: US$539.00

You save US$40.99!

Availability:: Usually ships the next business day
Product Code: E70204

Extended Warranty

2 Year Extended Warranty under $500 [Add US$29.99]
4 Year Extended Warranty under $500 [Add US$49.99]
No Extended Warranty

Description

Extended Information

Visionality – See the real world below your boat using Raymarine CHIRP DownVision™ technology.

Following up on Raymarine’s award winning Dragonfly DownVision™ CHIRP sonar, the CP100 now brings this technology to Raymarine multifunction displays. Coupled with the intuitive LightHouse user interface, the CP100 can network with a, c, e, and gS series multifunction displays (v7.35 LightHouse software or higher required.

Photo-like imagery of bottom structure using Raymarine's CHIRP DownVision technology

DownVision™ depth performance to 600ft

Dual Channel CHIRP sonar; view high resolution CHIRP DownVision structure imagery and target fish with CHIRP sonar simultaneously.

Network the CP100 with Raymarine's latest generation multifunction displays. From the compact a Series to the flagship gS Series the CP100 brings underwater vision in resolutions up to 1280 x 800 pixels.

Underwater vision and amazing CHIRP technology

The CP100 network sonar module brings CHIRP DownVision technology to Raymarine's multifunction displays. CP100's CHIRP DownVision delivers a photo like view of the world beneath your boat, allowing you to image bottom structure with amazing detail and target fish simultaneously.

Unlike conventional imaging sonars that transmit a single frequency with each pulse, the CP100 uses CHIRP technology to transmit across a wide spectrum of sonar frequencies with each pulse - the result is much higher resolution, photo-like sonar images.


Turtles seen swimming off Australia		Nevada wreck, Italy		Submarine Wreck

CP100 Applications

Freshwater Fishing

The CP100 is the ideal sonar solution for freshwater anglers. Combined with Raymarine e Series HybridTouch displays, the CP100 lets fresh anglers create a multi display network with HybridTouch control. Photo realistic CHIRP DownVision easily identifies the habitat of bass and other fresh water species.

Coastal Fishing

With depth performance up to 600ft, the CP100 is the perfect choice for coastal and bay fishing. Image wrecks with unmatched fidelity and use the second CHIRP channel to target bait and predators.

Raymarine CP100 Sonar Module Specifications

Product Number	E70204

Compatible with	New a Series, New e Series, new c Series and gS Series Note: Ensure you have the latest software
Sonar type	CHIRP
Nominal supply voltage	12/24V DC Systems
Operating voltage range	10.2 - 32 V DC
Power consumption at full power	3 watts
Operating temperature range	0ºC to +55ºC
Storage temperature range	-30ºC to +70ºC
Waterproofing standard	IPX6 and IPX7
Connections	Power (power cable), transducer (9 pin connector), and Raynet network connector
Transducer info	Max depth DownVision - 600ft, Traditional - 600ft. Centre frequency DownVision 350 kHz, Traditional 200 kHz
