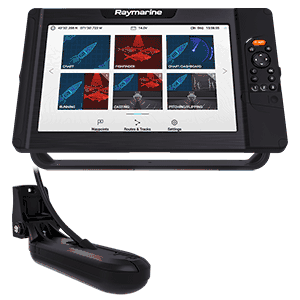

Raymarine Element 9 HV Combo with HV-100 Transducer E70534-05

Fish Smarter - Above and Below the Waterline

Knowledge is power—and the Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Bright and Rugged

Sunlight viewable displays with integrated GPS/GNSS receiver.

Superior HyperVision™

1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.

RealVision™ 3D Built-In

Accurately identify the location of ledges, channel beds, and other contour changes.

Fast Quad-Core Processor

For instantaneous chart re-draw and sharp 3D imaging.

All-in-one Transducer - Select Model

Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

Intuitive Controls

An oversized waypoint key for marking your favorite spots and three user-programmable keys.

HYPERVISION DOWN

HYPERVISION SIDE

Turn Up the Resolution with HyperVision™

HyperVision uses super high frequencies (1.2 megahertz) and CHIRP technology to bring a new level of precision imaging to DownVision, SideVision and RealVision 3D
1.2 megahertz HyperVision mode is optimized for super high-resolution imagery up to 100’ (30 meters)
Switch to standard 350 kHz CHIRP sonar for longer range, high-resolution imaging, and ranges up to 600’ (180 meters)
Element’s advanced CHIRP sonar also operates in the high-frequency 200kHz range for fish targeting, high-speed bottom

HyperVision™ CHIRP Transducers

The all-in-one design of Element's HyperVision transducers make them compact and easy to install. Raymarine offers convenient transom mount and thru-hull options to fit any boat.

New transducers:

HV-100 All-in-one transom mount transducer
HV-300TH All-in-one plastic thru-hull transducer
HV-300THP All-in-one thru-hull transducer pair for deep v hulls

Connections

Power and NMEA2000
Transducer

Element HV Display Installation instructions 87360-1-EN.pdf

LightHouse Sport (Element) Basic Operation instructions 81384-1-EN.pdf

MODEL	Element 7 HV	Element 9 HV	Element 12 HV

GENERAL SPECIFICATIONS

Display Size	7.0" Optically Bonded LCD	9.0" Optically Bonded LCD	12.0" Optically Bonded LCD
Display Resolution	800 x 480 WVGA		1280 x 800 WXGA
Display Type	Non-Touch
Brightness	1,500 nits
Viewing Angle	Top 50° / Bottom 60° / Left 70° / Right 70°		Top 89° / Bottom 89° / Left 89° / Right 89°

PHYSICAL

Overall Dimensions W x H x D	240 x 135 62mm (9.5 x 5.3 x 2.4 inches)	287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)	357 x 215 x 62mm (14.1 x 8.5 x 2.4 inches)
Product Weight (lbs)	3.0	5.0	6.5
Water Ingress Protection	IPx6 and IPx7
Operating Temperature Range	-25°C to + 55°C (-13°F to 131°F)
Storage temperature range	-30°C to +70°C (-22°F to 158°F)

POWER

Voltage	12V DC (8V to 16V DC)
Power Consumption (max 12V DC)	15 Watts	20 Watts	25 Watts

SENSORS

GNSS / GPS	Built-in GNSS Receiver: GPS/GLONASS
Sonar Type (Built-in)	Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
Sonar Connection	15 pin HyperVision™ type connector
Sonar Depth	CHIRP Sonar = 274m (900 feet) DownVision™ Standard = 183m (600 feet) \| DownVision™ Hyper = 30m (100 feet) SideVision™ Standard = 91m (300 feet) \| SideVision™ Hyper = 30m (100 feet) RealVision™ 3D Standard = 91m (300 feet) \| RealVision™ 3D Hyper = 30m (100 feet)

NETWORKING

Ethernet	N/A
NMEA0183	N/A
NMEA2000	1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking	INPUT: NMEA2000 Compatible Engines (Max 2) \| NMEA2000 Compatible Tank Sensors (Max 4) \| Heading Sensor (for Chart Stabilization) OUTPUT: GPS (for VHF Distress and DSC)
SeaTalk^ng	Requires A06045 DeviceNet female (F) adapter cable - 400mm
USB	N/A
Wi-Fi	WiFi - 802.11 b / g / n
BlueTooth	Bluetooth 4.0 + Low Energy + Power Class 1.5

OTHER SPECIFICATIONS

Cartography	Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents	Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks	10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Internal Memory	8GB Solid State
External Memory	1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)

ELEMENT WHAT'S IN THE BOX

ELEMENT SONAR / GPS
1	Trunnion bracket with mounting hardware
2	Surface mount kit with mounting hardware
3	Sun cover
4	Power / NMEA2000 1.5m cable
5	Documentation pack
6	Cartography (optional)

ELEMENT SONAR / GPS WITH TRANSDUCER
1	Trunnion bracket with mounting hardware
2	Surface mount kit with mounting hardware
3	Sun cover
4	Power / NMEA2000 1.5m cable
5	Documentation pack
6	Cartography (optional)
7	HV-100 Transucer with 6m cable
8	Transom bracket with mounting hardware
9	P-clips with mounting hardware (x5)
10	Escutcheon plate with mounting hardware
