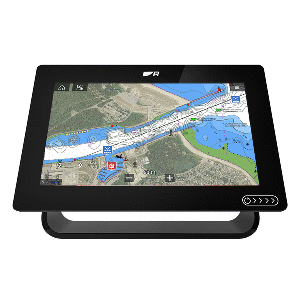

Raymarine Axiom+ 9 - 9" Multi Function Display Chartplotter (No Sounder) E70636

Home > Electronics > Fish Finder & Sonar Scanner > Raymarine Fish Finder & GPS > Raymarine Axiom+ Series >

Alternative Views:

Brand New with Factory's Warranty

List Price: US$1,199.99

Our Price: US$1,199.99
Free Ground shipping to Lower 48 States

Availability:: Usually ships the next business day
Product Code: E70636

Extended Warranty

2 Year Extended Warranty under $1500 [Add US$69.99]
4 Year Extended Warranty under $1500 [Add US$129.99]
No Extended Warranty

Description

Extended Information

The performance-tuned Axiom^®+ is a new generation of award-winning Raymarine multifunction displays. Optimized for speed, Axiom Plus is equipped with a powerful quad-core processor for industry-leading responsiveness and speed, giving you the power to seamlessly redraw charts, navigate with augmented reality.

New, higher resolution IPS displays deliver 25 percent more brightness and new day/night color palettes offer enhanced visibility in any lighting condition. Axiom Plus features the renowned LightHouse 3 OS, the most powerful and easy-to-use Raymarine MFD operating system to date.

PERFORMANCE TUNED

Designed for speed, performance, and future expansion.

FAST & FLUID

Fluid and fast chart redraw of LightHouse, Navionics, and C-MAP electronic charts.

QUAD-CORE POWER

Powerful quad-core processor, plus increased onboard storage for personal data and apps.

LIGHTHOUSE 3 OS

Smart and intuitive LightHouse 3 OS makes navigating easy.

AUGMENTED REALITY

ClearCruise™ Augmented Reality-capable for smarter navigation decisions.

HYDROTOUGH™ DISPLAY

Nano-coated, impact-resistant glass screen repels water, oil, and smudges for better viewing and accurate touch controls.

BRIGHTER

7, 9, and 12 inch all-weather displays are up to
25 percent brighter (up to 1,800 nits).

SHARPER

IPS display technology delivers wider viewing angles and sharp contrast at twice the resolution of traditional displays.

MODEL	Axiom+ 7	Axiom+ 9	Axiom+ 12

GENERAL

Display Size	7.0 inch High Density IPS	9.0 inch High Density IPS	12.1 inch High Density IPS
Display Resolution	1024 x 600 (WSVGA)	1280 x 720 (WXGA)	1280 x 800 (WXGA)
Display Type	Multitouch with HydroTough™ rugged hydrophobic coating
Brightness	1,500 nits	1,500 nits	1,800 nits
Viewing Angle	85° Top, Bottom, Left, Right	85° Top, Bottom, Left, Right	88° Top, Bottom, Left, Right
Dimensions W x H x D	210 x 142 x 77mm 7.92 x 5.24 x 3.0in (Excluding trunnion and cables)	244 x 158 x 77mm 9.65 x 6.22 x 3.0in (Excluding trunnion and cables)	314 x 217 x 77mm 12.36 x 8.54 x 3.0in (Excluding trunnion and cables)
Weight	3 lbs	5 lbs	6.5 lbs
Mounting Options	Surface, Flush, Trunnion, (Front installation bracket available)
Waterproof Rating	IPX6 / IPX7
Operating Temperature Range	-25°C to +55°C (-13°F to +131°F)
Storage Temperature Range	-30°C to +70°C (-22°F to +158°F)

POWER

Voltage	12V DC (8V to 16V DC)
Power Consumption (Full brightness)	7.34 Watts. RV Sonar version 9.84 Watts	8.95 Watts. RV Sonar version 11.98 Watts	15.48 Watts. RV Sonar version 19.96 Watts

SENSORS

GNSS / GPS	Built-in GNSS Receiver: GPS/GLONASS/Galileo/Beidou^* - 10Hz 28 Channel ^*Future software update required
Sonar Type (Built-in)	N/A
Sonar Connections	N/A
Sonar Depth	N/A
External Sonar Option	Yes - CP100, CP200, CP370, CP470, CP570, RVX1000 via RayNet
Radar	Yes - Quantum, Digital, HD Colour / Super HD Colour and Magnum Radars
AIS	Yes - NMEA2000 compatible
Autopilot Control	Yes - Evolution Autopilot
Thermal Night Vision	Yes FLIR AX8, M232, M300 Series, M400, M500
Video / Camera	Compatible with CAM210IP, CAM220IP (Up to 10 IP network cameras)
Weather	GRIB View - Free GRIB viewer and Theyr Ltd Subscription \| SiriusXM - N. America Only
Audio	NMEA2000 / Bluetooth speaker controls / Optional SiriusXM Audio
Digital Switching	Yes - Empirbus & C-Zone compatible
Remote Control	Yes Optional RMK-10 (A80438)

NETWORKING

Ethernet	1 x 10/100 Mbit/s Network (RayNet)
NMEA0183	No
NMEA2000	NMEA2000 via DeviceNet port. SeaTalkng compatible using an optional adapter
SeaTalkNG	Requires DeviceNet Female (F) adaptor cable (A06079 120mm adaptor included in box)
USB	1 x USB microAB
Wi-Fi	WiFi - 802.11 a/b/g/n
BlueTooth	Bluetooth v4.0

NAVIGATION

Cartography	Lighthouse Charts, Navionics, and C-MAP compatible
Waypoint/Routes/Tracks (Wpts/Rts/Trk)	10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts

MEMORY

Internal Memory	16 GB Solid State
External Memory	1x MicroSD Card Slot
Languages	24
Conformances	NMEA 2000 certification \| Europe: 1999/5/EC \| Australia and New Zealand: C-Tick, Compliance Level 2 \| FCC 47CFR part 15 \| Industry Canada RSS210

OTHER

Languages	24
Conformances	NMEA 2000 certification \| Europe: 1999/5/EC \| Australia and New Zealand: C-Tick, Compliance Level 2 \| FCC 47CFR part 15 \| Industry Canada RSS210

DOWNLOAD DATA SHEET

Axiom+ MFD Installation instructions 87414-1-EN.pdf

Axiom MFD Installation instructions 87298-3-EN.pdf

LightHouse 3.11 Advanced Operation instructions 81370-14-EN.pdf

LightHouse 3.7 Basic Operation instructions 81369-8 EN.pdf

Axiom MFD Front Installation Kit Installation instructions 87304-1-EN.pdf

Axiom RV100 3D Transom Transducer mounting template WEB 87294-1.pdf

Axiom 12 MFD surface and flush mounting template 87297-1 WEB.pdf

Axiom 9 MFD surface and flush mounting template 87296-1 WEB.pdf

Axiom 7 MFD surface and flush mounting template 87295-1 WEB.pdf
