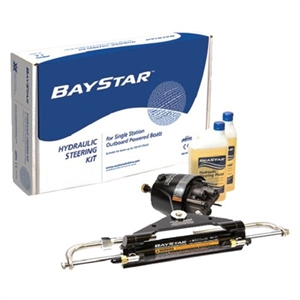

Seastar Baystar Compact Hydraulic Steering Kit (No Hose), HK4300A-4

Home > Engine Parts > Boat Steering System > Boat Hydraulic Steering > Hydraulic Steering Kit >

Brand New with Factory's Warranty

List Price: US$1,044.00

Our Price: US$869.99
Free Ground shipping to Lower 48 States

You save US$174.01!

Availability:: Usually ships the next business day
Product Code: HK4300A-3

Description

Extended Information

Application: BayStar is for single-outboard powered boats rated up to 150 HP, including runabouts and inflatables and outboard engines with ABYC standard engine tilt tubes up to 150 HP (total). For single station, single engine use only. BayStar is not intended for high speed, high performance type boats.
Helm and cylinder equipped with adjustable O-ring fittings to simplify the installation process and allow for simple reorientation of the fittings after installation.

Requires 5" H x 6" D x 21" W minimum splashwell
5 Turns from lock-to-lock
Balanced cylinder that fits most splashwells and provides full engine movement
Compact helm has only a 5" footprint; needs only 3" dash hole (Standard or Tilt)
Complete with helm, cylinder, fittings, tubing, oil, fill kit & instructions
Standard 3/4" tapered steering shaft
Meets A.B.Y.C. standards and meets NMMA certification requirements
Two year warranty

Includes:

HH43143 - BayStar Helm 1.4 cu with adjustable O-ring fittings
HC4645H3 - BayStar Compact Cylinder
HA5430 (2) - Hydraulic Oil (1 liter)

CAUTION
BayStar is ONLY applicable for single station steering. DO NOT use BayStar on smaller HP outboard engines that use wing nut type transom mount clamping screws.

Notice
Tilt Helm HH4315 is available separately. Currently not available in kit form.

APPLICATION GUIDE

(Cylinders HC4645H/47H/48H/58H)

MANUFACTURER	YEAR	MODEL	CYLINDER	NOTES
FORCE	1985–DATE	90–150 HP	HC4645H
HONDA	1992–DATE	30–90 HP	HC4645H
	1998–2009	115–130 HP	HC4647H
	2001–DATE	150 HP	HC4645H
	2003–DATE	BF135 HP	HC4645H
	2010–DATE	115–150 HP	HC4645H
JOHNSON / EVINRUDE	1977–1989	65–150 HP	HC4648H
	1991–DATE	40–150 HP	HC4645H
	1997–DATE	115 HP FICHT	HC4658H	See Notes 4, 5
	1997–DATE	75–150 HP FICHT	HC4645H
	1998–DATE	40–140 HP 4-Stroke	HC4658H	See Notes 1, 4
MERCURY/MARINER	1984–DATE	75–150 HP	HC4645H
NISSAN	1990–DATE	120–140 HP	HC4645H
SUZUKI	1986–DATE	150 HP	HC4645H
	1996 ONLY	115–140 HP	N/A
	1987–2002	115–140 HP	HC4645H	See Note 1
	1990–2000	90–100 HP	HC4645H
	1998–DATE	40–70 4-Stroke	HC4645H	See Note 1
	2001–DATE	115–140 HP 4-Stroke	HC4658H	See Notes 1, 4
TOHATSU	1990–DATE	140–140 HP	HC4645H
YAMAHA	1998–DATE	40–50 HP	HC4645H	See Note 2
	1998–DATE	60 HP	HC4645H	See Note 3
	1986–DATE	70–90 HP	HC4645H	See Note 1
	1997–DATE	80–150 HP 4-Stroke	HC4645H
	2000–DATE	25–60 HP 4-Stroke	HC4648H	See Note 1
	2010–DATE	70HP 4-Stroke	HC4648H
YANMAR	1990–DATE	27–36 HP	HC4645H

Notes
1. Requires Spacer kit part # HO5090
2. Engine clamp brackets must be cut or ground, and the engine through bolted onto the transom, or interference will occur, restricting engine trim and tilt.
3. Steering hook Yamaha Part # 63D-48511-00-4D must be installed
4. Cylinder HC4645 may be used in these applications. The pivot plate will need to be flipped before installation.
Instructions provided with Owner’s Manual.
5. Johnson 115 HP 2-Stroke enginnes, require the pivot plate to be flipped. See Note #4.
