Hella Marine’s new ‘Slim Line’ round LED courtesy lamps are an attractive, energy efficient, no maintenance solution for a variety of interior and exterior lighting applications. The new LED lamps are available in 9 exciting colours and feature a mounting depth of only 13.0mm. Rims are available in polished 316 stainless steel, gold plated stainless steel, black or white plastic. Custom coloured plastic rims and surface mounting spacer rings are also available. Hella Marine LED lamps consume a fraction of the energy of traditional bulb lamps and run very cool due to their low current draw. This provides safer installation into light weight materials where the heat of traditional lamps may cause damage to the surrounding structure. Advanced Hella lens technology provides a cool and even spread of soft light without glare or eye strain. Hella marine LED technology has no filaments to break making the lamps extremely shock, impact and vibration resistant and completely maintenance free for an ultra long service life. Each lamp is a completely sealed and waterproof unit, UV and corrosion resistant, perfectly suited for the demanding marine environment. Hella marine LED courtesy lamps represent energy efficient, maintenance free ‘fit and forget’ technology.

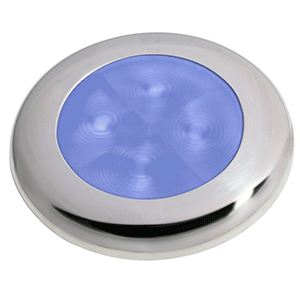

12V Polished Stainless Steel Rim

Part Number: 2XT 980 502-221

12V Gold Plated Stainless Steel Rim

Part Number: 2XT 980 502-231

12V White Plastic Rim

Part Number: 2XT 980 502-241

12V Black Plastic Rim

Part Number: 2XT 980 502-251

24V Polished Stainless Steel Rim

Part Number: 2XT 980 503-221

24V Gold Plated Stainless Steel Rim

Part Number: 2XT 980 503-231

24V White Plastic Rim

Part Number: 2XT 980 503-241

24V Black Plastic Rim

Part Number: 2XT 980 503-251

Specifications

Material Description UV and impact resistant plastic Installation Pre-wired with 120mm of cable Protective System IP 67 Mounting Recess or surface mount 3 stainless steel screws included Light Source 4 LEDs Operating Voltage 12V or 24V DC Power Consumption 0.5W

Outline
