JRC JMA-3406HS Radar with 3.9' Open Array & 12" Monitor
JRC JMA-3406HS Radar with 3.9' Open Array & 12" Monitor

Ship only via Ground Freight Rate.



Brand New with Factory's Warranty
List Price: US$10,459.00
Our Price: US$8,899.00
You save US$1,560.00!


Free Shipping
Availability:: Contact us for availability
Product Code: JMA-3406HS

Description


Features

The newest addition to the JRC radar portfolio is the JMA-3400 series. This lightweight radar has user-friendly operation system and is specially designed for fishing boats, non-international trading vessels and workboats. The system can be completed by choosing from a variety of 2 ft, 3.9 ft, 4 ft and 6 ft scanners.

  • 12.1-inch fully dimmable display
  • High-visibility by glass-bonded display
  • Chart overlay (NAVIONICS+)
  • Real Time Head-up Function (Constaview)
  • Variety of compact X-band scanner units
  • High speed version available
  • Brushless antenna motors for extended lifetime
  • Light-weight design
  • Latest technologies included
  • Multi-Language
  •

Display

The 12.1-inch dimmable LCD provides excellent visibility and durability. It reduces reflection of sunlight and shows clear images of even the smallest targets. The ergonomic keyboard offers user customizable keys. Programming the USER keys give you instant access to your favourite functions.

The newly developed thin body is reduced till only 97.1 mm depth, so that it can be installed on small vessels where effective use of the limited space needs to be taken in account.



Radar overlay

By displaying the radar image and the NAVIONICS+:*1 chart in an overlapping manner, you can grasp the relationship between the radar image and the coastlines simultaneously.

Constaview

Naturally our patented real time Constaview functionality is incorporated into the new radar system, processing the radar image before being displayed, generating a smooth rotation when sailing in Head-Up mode. To use real-time Head-Up, own ship position information (GPS connection) and input of heading information (compass connection) is required. When changing to North-Up, the new radar image is displayed without any delay caused by the scanner rotation. By displaying the other ships moving with a tail and displaying the fixed objects such as land and buoys so that they do not pull the tail, the movements and fixed objects of other ships can be accurately read.

Real time Head-Up mode

Relative Trails

Traditional technology relies on several sweeps of the scanner to redraw the image. Trails are presented as relative.

True Trails

Constaview refreshes the image every 16 ms. Despite heading changes trails are always true.

Scanners

A wide range of X-band scanners, varying from small and light radome type to open array type, are available depending on installation space and required performance, all with exceptionally reliable target detection capabilities. The latest leading technologies with a set of advanced features are integrated, allowing the radar to run images faster and more efficient than ever before. Also, the brushless antenna motors in the scanner guarantee for extended lifetime.

AIS

By connecting with AIS, it is possible to display ships on the island’s shadow where radar waves do not reach, enabling safer navigation.

In order to use the AIS display function, it is necessary to input own ship position information (GPS connection), heading information (compass connection) and AIS information

The JMA-3400 series is equipped with target tracking (TT) function and AIS display function.
To use the target tracking function, input of heading information (compass connection) is required.

System

*2 : 4 kW, 6 kW model available to be use 5/10/15/20 m at 12 VDC power input.
*3 : 12 V/24 V : 4/6 kW, 24 V : 6 kW-HS, 10 kW/10 kW-HS

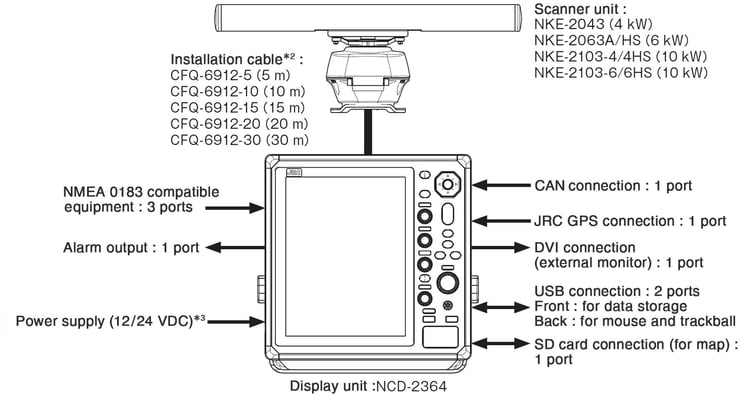

Dimensions

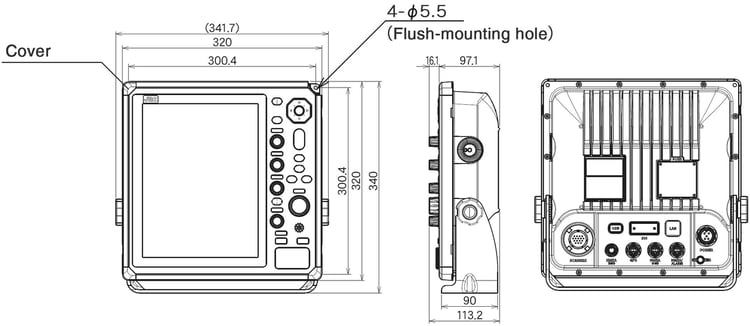

Display unit NCD-2364
Mass : Approx. 5 kg

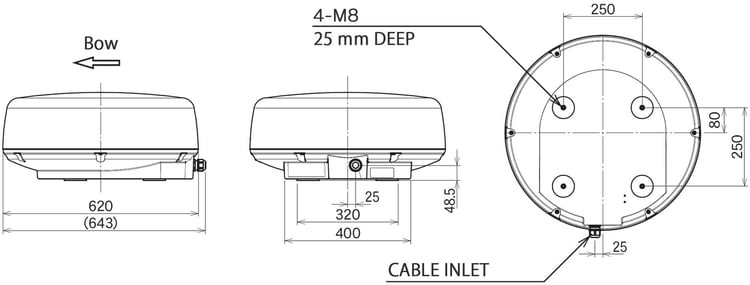

Scanner NKE-2043
Mass : Approx. 10 kg

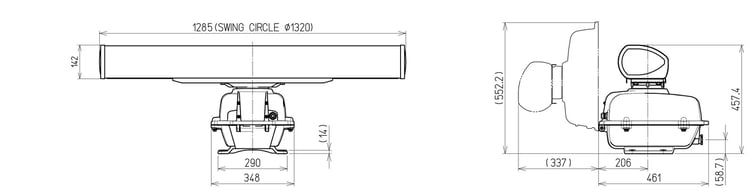

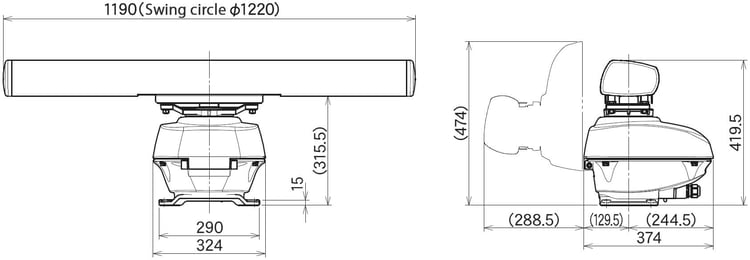

Scanner NKE-2063A/HS
Mass : Approx. 21kg

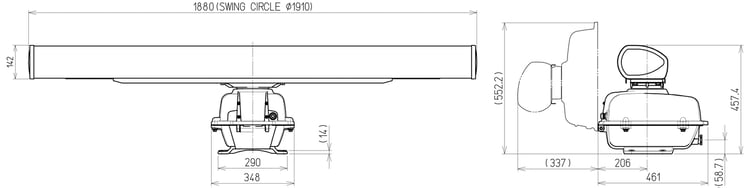

Scanner NKE-2103-4/4HS
Mass : Approx. 34 kg

Scanner NKE-2103-6/6HS
Mass : Approx. 36kg







Specifications

Name Marine Radar
Model JMA-3404 JMA-3406 JMA-3406HS JMA-3411-4 JMA-3411-4HS JMA-3411-6 JMA-3411-6HS
Scanner
Model NKE-2043 NKE-2063A NKE-2063AHS NKE-2103-4 NKE-2103-4HS NKE-2103-6 NKE-2103-6HS
Transmitting frequency X-band(9410 MHz)
Transmitting power 4 kW 6 kW 10 kW
Scanner type Radome Open
Antenna length 2 ft 3.9 ft 4 ft 6 ft
Rotation speed 16-48 rpm 16-27 rpm 27-48 rpm 16-27 rpm 27 ft-48 rpm 16-27 rpm 27 ft-48 rpm
Beam width H:4 °, V:25 ° H:2 °, V:30 ° H:1.9 °, V:20 ° H:1.2 °, V:20 °
Maximum range 48 NM 72 NM*4
Range scale 0.0625,0.125,0.25,0.5,0.75,1,1.5,2,3,4,6,8,12,16,24,32,48,64,72 NM*4
Range resolution 4 kW:22 m,6 kW:25 m,10 kW:30 m(4 ft),30 m(6 ft)
Minimum detective range 4 kW:20 m,6 kW:25 m,10 kW:20 m(4 ft),22 m(6 ft)
Bearing accuracy less than ±1 °
Pulse width/Repitation frequency 0.08 µs/4000 Hz*5, 0.08 µs/2250 Hz, 0.13 µs/1700 Hz*5, 0.25 µs/1700 Hz, 0.5 µs/1200 Hz, 0.8 µs/750 Hz, 1.0 µs/650 Hz
Display unit
Model NCD-2364
Screen size and resolution 12.1-inch SVGA color LCD, 600×800 dot
PPI effective diamater 184 mm
Chart data Overseas : NAVIONICS+ / Japan : new pec
Presentation mode RM : North-UP, Head-UP, Course-UP
TM : North-UP, Course-UP
Gain Auto / Manual
Sea/Rain Auto / Manual
Trail indication Short : Off/0.25/0.5/1/2/3/4/5/6/10/15 min/All
Middle : Off/0.5/1/2/3/4/5/6/10/15/30 min/All
Long : Off/1/2/3/4/5/6/10/15/30/60 min/All
Super Long : Off/30 min/1/2/at 1 hr interval/24 hr/All
Off center 2/3 radius of PPI
TT acquisition mode Auto / manual
Tracking target capacity 30 targets
Acquisiton and trackingrange 20 NM
Target data True bearing, range, true course, true speed, CPA, TCPA
Vector mode and length True/relative vector, adjustable from 1 to 60 min
Guard zone 2 zone (Auto TT:1)
Alarms CPA/TCPA, new target, lost, system error
AIS target capacity 100 targets
Power supply 12/24 VDC 24 VDC
Power consumption Approx 60 W Typcal : approx 85 W
In maximum wind : approx 180 W		 Typcal : approx 85 W
In maximum wind : approx 230 W		 Typcal : approx 100 W
In maximum wind : approx 210 W		 Typcal : approx 100 W
In maximum wind : approx 360 W		 Typcal : approx 100 W
In maximum wind : approx 210 W		 Typcal : approx 100 W
In maximum wind : approx 360 W
Operating temperature -25 ℃ to +55 ℃ (scanner), -15 ℃ to +55 ℃ (display unit)
Relative humidity : 93 %@40 ℃
Waterproofing IP26 (scanner), IP55*6 (display unit)

*4 : 72 NM is only 6 and 10 kW.
*5 : Only JMA-3404 and JMA-3406/HS.
*6 : IP55 when using the waterproof rubber cap.

  • NAVIONICS+ is a registered trademark of Navionics.
  • NAVIONICS+ is the electronic chart data that is made available by Navionics.
    For the information regarding the NAVIONICS+ electronic chart, please contact JRC/Alphatron Marine.

Components

Standard components

Name Model Q'ty
Scanner NKE-2043
NKE-2063A
NKE-2063AHS
NKE-2103-4
NKE-2103-4HS
NKE-2103-6
NKE-2103-6HS		 ×1
Display unit NCD-2364 ×1
Sun cover   ×1
Power cable CFQ-7758 ×1
Instruction manual (Japanese) 7ZPRD1006 ×1
Simplified manual (Japanese) 7ZPRD1009 ×1
Instruction manual (English) 7ZPRD1007 ×1
Simplified manual (English) 7ZPRD1010 ×1

Option

Name Model
Installation cable (5 m) CFQ-6912-5
Installation cable (10 m) CFQ-6912-10
Installation cable (15 m) CFQ-6912-15
Installation cable (20 m) CFQ-6912-20
Installation cable (30 m) CFQ-6912-30
NMEA cable for GPS CFQ-9002
NMEA cable for NMEA0183 CFQ-5374
CAN cable CFQ-7765
Rectifier NBA-5111
Rectifier NBD-865
Rubber cap for installation cable MTT317838
new pec chart card CDD-812
