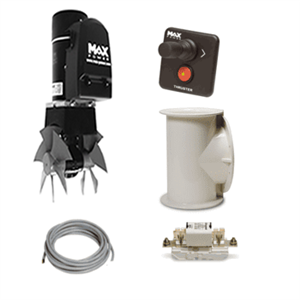

Max Power CT100 Electric 7.1kw/9.5HP 185mm Stern Thruster Package with 25m Cable 12V

Home > Engine Parts > Bow Stern Thruster > Max Power Bow Stern Thruster > Max Power Electric Thruster >

Ship only via Ground Freight Rate. No Flat Rate

Alternative Views:

Brand New with Factory's Warranty

List Price: US$3,883.95

Our Price: US$3,127.95

You save US$756.00!

Availability:: Usually ships the next business day
Product Code: MAXPACK25

Control Type*:

Joystick
Touch Panel

Description

Extended Information

Ship only via Truck Ground Freight. No Flat Promo Rate or Free shipping

Max Power offers a complete range of 12V/24V electric tunnel thrusters to suit motor boats and deep footed sailing yachts from 17’ to 85’ feet.

Designed for performance & durability, Max Power electric tunnel thrusters offer many unique features:

Corrosion free composite drive legs eliminate the need for periodic anode changes and offer high manufacturing tolerances
Drive legs are pre-filled with oil and sealed for life for zero maintenance
Case hardened spiro-conical gears guarantee a silent, smooth and durable drive leg
Line shields protect oil seals from fishing lines & fouling, ensuring maintenance free operation
High efficiency, purpose built DC motors ensure outstanding performance and long runtime ratings
Solid copper contact bars guarantee safe, high power connections
Purpose built high specification DC contactors are both safe and durable
Electronic control boxes offering unique and unrivaled safety features to protect against accidental misuse

The 12V, twin propeller CT100 suits a wide range of motor boats and deep footed sailing yachts ranging from 30’-53’. This composite thruster has a tunnel diameter of 185mm and a thrust rating up to 90/198 (kg/lbs).

The CT100, like all Max Power electric tunnel thrusters, is maintenance free, benefits from a long lifespan and integrates all the unique features of this range

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

Code	Voltage	Thrust	Propellers	Power	Weight	A	B	C	D	E
42534	12V	96(kg) / 212(lbs)	2	7.1(kw) / 9.5(hp)	24(kg)	250(mm)	200(mm)	365(mm)	185(mm)	6 - 7(mm)

Note: The price is subject to change at any time without any notice. Not responsible for any typographical errors. Any products can be cancelled from sale at any time.
