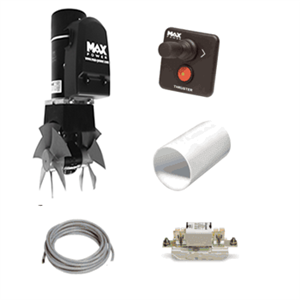

Max Power CT60 Electric 4.3kw/5.8HP 185mm Tunnel Thruster Package with 25m Cable
Max Power CT60 Electric 4.3kw/5.8HP 185mm Tunnel Thruster Package with 25m Cable

Brand New with Factory's Warranty
List Price: US$2,833.95
Our Price: US$1,993.95
You save US$840.00!



Free Shipping
Availability:: Usually ships the next business day
Product Code: MAXPACK3


Bow Tunnel Length*: 		30 In Long for CT60/80/100/125
40 In Long for CT60/80/100/125 [Add US$40.00]
60 In Long for CT60/80/100/125 [Add US$70.00]

Control Type*: 		Joystick
Touch Panel

Select Voltage*: 		12V
24V
Description Extended Information


Max Power offers a complete range of 12V/24V electric tunnel thrusters to suit motor boats and deep footed sailing yachts from 17’ to 85’ feet.

Designed for performance & durability, Max Power electric tunnel thrusters offer many unique features:

  • Corrosion free composite drive legs eliminate the need for periodic anode changes and offer high manufacturing tolerances
  • Drive legs are pre-filled with oil and sealed for life for zero maintenance
  • Case hardened spiro-conical gears guarantee a silent, smooth and durable drive leg
  • Line shields protect oil seals from fishing lines & fouling, ensuring maintenance free operation
  • High efficiency, purpose built DC motors ensure outstanding performance and long runtime ratings
  • Solid copper contact bars guarantee safe, high power connections
  • Purpose built high specification DC contactors are both safe and durable
  • Electronic control boxes offering unique and unrivaled safety features to protect against accidental misuse
Available in 12V or 24V, the CT60 is suited to motor boats and deep footed sailing yachts between 20’-40'.

Manufactured using composite materials, the CT60 is a single propeller thruster with a 185mm diameter tunnel and thrust rating up to 60/132 (kg/lbs) on the 12V model, or 60/143 (kg/lbs) on the 24V model.

Integrating the unique features common to the Max Power electric tunnel thrusters range, the CT60 is fitted as standard on a large variety of yachts.

* Thrusters are designed to run at 10.75V on 12V units and 22V on 24V units. Higher voltages will result in higher thrust ratings, higher power consumption, and a reduced duty cycle.
* Performance data is given for a thruster installed at an immersion depth of one tunnel’s diameter, in a tunnel no longer than twice the tunnel’s diameter, and this within a variation of + / - 6%. Longer tunnels will result in lower thrust ratings and higher power consumption.

Code Voltage Thrust Propellers Power Weight A B C D E
42530 12V 58(kg) / 128(lbs) 1 4.35(kw) / 5.8(hp) 14.7(kg) 210(mm) 140(mm) 275(mm) 185(mm) 6 - 7(mm)
