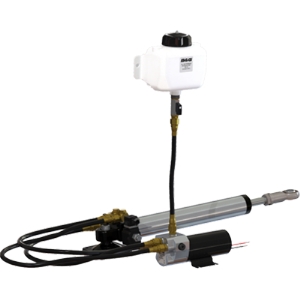

B&G T3 Linear Hydraulic Drive 24V, RAM-T3-24V

Brand New with Factory's Warranty

List Price: US$3,399.00

Our Price: US$3,399.00
Free Ground shipping to Lower 48 States

Availability:: Usually ships the next business day
Product Code: PILOT-RAM3

Description

Extended Information

Hydraulic Ram T3 24V

High power, efficient drive unit for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure. T3 drives have a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder.

Product details

Key features

T3 drives have a separate hydraulic pump to allow for greater mounting flexibility on this larger cylinder Always remember to use the fully laden displacement of your boat when selecting a pilot.Typically a yacht fully provisioned with the water and fuel tanks full, can be as much as 20% above the designed displacement. If your boat falls between two pilot types, choose the larger pilot type - an under rated pilot may not be able to perform adequately when you need it most. If in doubt, please check with an authorised B&G Dealer.

Max Boat Size: 79,000 lbs (36,000 kg)

Stroke: 11.8 in (300 mm)

Hard Over Time: 13 sec

Tiller Arm: 10.11 in (257 mm)

Thrust: 2425 lbs (1100 kg)

Rudder Torque: 623.9 lbs (283 kg)

Required Computer: AC42/NAC-3 - 3/H5000
Operator Manual
RAM T3 User Manual (en-us)
