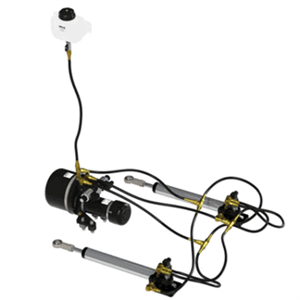

B&G T4 Linear Hydraulic Drive 24V RAM-T4-24V

Brand New with Factory's Warranty

List Price: US$11,190.00

Our Price: US$11,190.00
Free Ground shipping to Lower 48 States

Availability:: Usually ships the next business day
Product Code: PILOT-RAM4

Description

Extended Information

T4 Pilot Ram

SKU: RAM-T4-24V

B&G T4 24V Hydraulic RAM is suitable for yachts with either cable or rod steering.

Product details

High power, efficient drive units for maximum power with minimum consumption. Ram allows the Power Steer Mode on the Pilot to be used in case of manual steering failure.

Key features

High power efficient drive units for maximum power with minimum consumption.
Ram allows the Power Steer Mode on the Pilot to be used in the event of manual steering failure
T4 utilises a constant running hydraulic pump and two steering cylinders for the best compromise of performance, reliability and efficiency

High power, efficient drive units for maximum power with minimum consumption. Ram drives allow the Power Steer mode on the Pilot to be used in cases of manual steering failure. Type 4 systems utilise a constant running hydraulic pump and two steering cylinders for the best compromise of performance, reliability and efficiency on larger vessels.

Max Boat Size	55000 kg
Stroke	300 mm
Hard Over Time	15 seconds
Tiller Arm	257 mm
Thrust	2200 Kg/f
Rudder Torque	566 Kg/m
Compatible Computers	H5000, NAC-3
