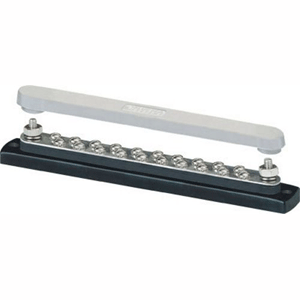

150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover

PN: 2312

• Stud design provides direct terminal to bus contact for low resistant connection
• Stainless steel studs and screws allow high torquing for excellent electrical contact
• Tin-plated copper bus for maximum conductivity and resistance to corrosion
• UL 94-VO rated (self extinguishing) base material resists high heat
• Press on insulating cover attaches to studs and allows unobstructed wire access
• Raised bus provides easy access to multiple wires on a single screw

Continuous Amperage	130 Amperes AC 150 Amperes DC
Maximum Voltage Rating	300 Volts AC 48 Volts DC
Bus Material	Tin-Plated Copper CDA 110/UNS11000
Base Material	Glass Reinforced Polycarbonate
Cover Material	Polycarbonate
Studs	Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal
Screws	Stainless steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal
Weight	0.58Lb

WARNING: This product can expose you to chemicals including Di-n-hexyl Phthalate, DnHP, which is known to the State of California to cause reproductive harm, and Vinyl Chloride which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
