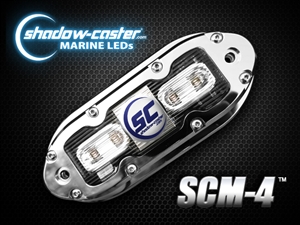

The SCM-4

Underwater LED Light
With four LEDs, this compact underwater light is the perfect addition to every vessel. Available in any of our five colors, the SCM-4 works with our Wireless Controller and Power Distribution Box for ease of use and installation.

SCM-4 General Features:

• High Intensity
  Shadow-Caster underwater LED lights are designed to deliver the most intense optical output. Our unique design allows us to produce maximum light output and maximum LED life (over 40,000 hours).
• Robust Design
  With Shadow-Caster underwater LED lights, there’s no additional external components to install. Just connect the cable (submersible to 20 feet). All the necessary electronics are integrated into the housing and resistant to vibration and the elements.
• Surface Mounted
  Our lighting solutions feature a low profile design that requires noalteration to the main hull
• Wide Input Voltage Range
  Shadow-Caster’s underwated LED lights have an input range of 10 to 30 volts and work equally well on sets of 12 or 24 volts.
• Surge and Reverse Polarity Protection
  Our lighting systems have an innovative protection system that automatically disconnects the input entry when excessive voltage or reverse polarity is detected.
• Thermal Protection
  Our unique thermal protection features a control system that detects internal temperature and adjusts energy production down to avoid damage.

• Size: 5.8” Length x 2.375” Width x .5” Height (147 x 60 x 13mm)
• Operating Voltage: 10 – 30 Volts DC with consistent brightness
• Current Draw: 1.4 Amps @ 12 Volts
• Internal high efficiency digital switching power supply
• 17 Watts of high efficiency LED light
• 40,000-Hour Lamp Life
• 120 degree light spread angle
• 316 Stainless Steel with Polycarbonate Lens Housing Materials
• 20′ (6m) Standard Cable Length
• 5 Brilliant Colors: Great White, Aqua Green, Bimini Blue, Ultra Blue and Cool Red
• 1-Year Warranty
• Made in the USA

• Documentation

  Data Sheet	SCTSCM4AG20_DataSheet.pdf
  Install Manual	SCTSCM4AG20_InstallManual.pdf
