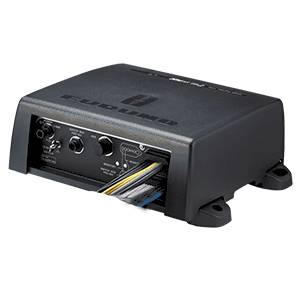

Furuno NavNet TZtouch2 Black Box Chartplotter/Fishfinder TZT2BB

Home > GPS & Chartplotter > Furuno GPS Chartplotter > Furuno Multifunction Display & Black Box >

Brand New with Factory's Warranty

List Price: US$6,495.00

Our Price: US$5,495.00
Free Ground shipping to Lower 48 States

You save US$1,000.00!

Availability:: Usually ships the next business day
Product Code: TZT2BB

Description

Extended Information

Total Control, simply refined

With the ability to drive multiple monitors with full HD HDMI video output in any combination of monitor aspect ratios (4:3 and 4:3, 16:9 and 4:3, or 16:9 and 16:9), a refined graphical user interface, and a built-in RezBoost Fish Finder, Furuno's NavNet TZtouch2 Black Box is a beauty to behold and use. Whether you are searching for hot fishing grounds, plotting your next route, or using your Radar to navigate through fog, NavNet TZtouch2 delivers smooth operation with familiar touch gestures.

*TZT2BB shown with optional monitors and MCU005 controller

Simply refined, simply beautiful

Following in the footsteps of the original NavNet TZtouch, TZtouch2 features a refined user interface that is all about usability. Elegantly designed, NavNet TZtouch2 allows you to build a navigation suite that is not only functional, but offers a luxurious look and feel. Taps, swipes, pinches, and custom multi touch gestures are instantly transformed into action, giving you full control of every component connected to your network.

Incredibly easy-to-use controller and graphical user interface

The optional MCU005 NavNet TZtouch2 Black Box controller enhances the built-in Multi Touch graphical user interface, and sets a new benchmark for "easy to use" in the marine electronics industry. This interface is not only intuitive, but is as easy to use as the phone in your pocket. The combination of an ergonomically designed, logical controller, along with a touch-screen Graphical User Interface, make operation simple. With taps, slides and swipes, you will be up and using your TZtouch2 in no time at all. Menus and other features slide out from each of the sides of the screen, ensuring that the most important tasks are literally right at your fingertips.

The available MCU004 Remote Control option features a large rotary knob which can be utilized for zooming in/out, while the joy stick allows you to pan around the chart and move the cursor on the screen. The MCU004 remote has 8 dedicated buttons that operate different functions, such as Edge Swiping, Home, Stand By/Auto for Autopilot control, MOB, and Center on vessel

Powerful Fish Finder with built-in Furuno features

The built-in Fish Finder is a dual-frequency (50/200kHz), 600W/1kW power output sounder. It includes Furuno’s unique Bottom Discrimination and AccuFish modes, and also incorporates another new Furuno proprietary Fish Finder technology, called RezBoost. RezBoost is a revolutionary new feature that utilizes Furuno’s exclusive digital signal processing protocol to produce fantastic target resolution and separation, without the need to change out your transducer, or purchase expensive broadband transducers. With RezBoost, you can now achieve target separation and resolution that was previously limited to Furuno commercial-grade Fish Finders.

Freedom to build the helm of your dreams

NavNet TZtouch2 is a component-based system that utilizes Furuno’s award winning network products. You can add a variety of UHD Radars, from a 4kW NXT Dome up to a 25kW X-Class Open Array. As with NavNet TZtouch, you can integrate, display, and control the NavPilot Autopilot, and Furuno’s FI70 Instrument. Both of these products have displays that match TZtouch2, giving your helm a beautiful all-glass finish. Additional sensors that can be added to the network include AIS, Weather Fax, Sirius/XM Satellite Weather, Fusion Marine Stereo, and IP Cameras, as well as NMEA2000 and Furuno CAN bus devices. It even includes one NMEA0183 output port to send data to legacy systems.

Remotely view and control your bridge with apps for your smartphone and tablet

Engineered to utilize the latest technology, NavNet TZtouch opens the door to cutting edge WiFi features, such as tablet and smartphone apps, points of interest (POI), real time weather data, software updates and more. Take full control of your NavNet in a whole new way. The TZtouch Remote app allows you to operate your system remotely with your smartphone or tablet over WiFi, when connected to the network.

MapMedia Raster and Vector Chart Library

Freely choose the charts that fit your individual needs and preference. MapMedia's NOAA Raster and Vector charts for the U.S. Coasts, Gulf of Mexico, Alaska and Hawaii come pre-loaded. In addition, MapMedia brings you free satellite photos and detailed fishing bathymetric charts that can be download for the U.S. Outside of the U.S., "C-MAP" and "Datacore by Navionics" vector cartography can be purchased and downloaded to your NavNet with ease. MapMedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.

Satellite PhotoFusion™ offers a birds-eye view without obstruction of critical data

You can load any two ultra-wide high-resolution satellite photo areas at your convenience. Land areas (zero depth) are completely opaque, so these areas are displayed as high-resolution satellite photos on the chart. As the depth increases, the satellite photography becomes more transparent. This allows you to see where the shallows end and the deeper water begins, while still allowing the raster or vector chart to be visible.

Free & easy-to-use marine weather forecasts

The weather tool is completely free and easy to use, giving you unlimited access to weather forecasts worldwide 24 hours a day provided by NavCenter. Select geographic coverage, data type, period of time, and then choose how to receive the file. NavNet TZtouch2 provides up to 16 days of weather forecasting.

User Interface

Simply refined, simply beautiful

Following in the footsteps of the original NavNet TZtouch, TZtouch2 features a refined user interface that is all about usability.
Whether you are searching for hot fishing grounds, plotting your next route, using your Radar to navigate through the fog, you can expect smooth operation with familiar touch gestures.

Graphical User Interface

You can “Edge Swipe” from all four sides to access various options. Swiping from the left of the screen reveals the NavData panel, where you can customize contents to simplify navigation and chart usage. You can set the autopilot, check tide information and much more. Swipe down from the top of the screen and display page options drop down for quick and easy access. Swipe the right side to view contextually appropriate menus, and swipe from the bottom for chart and data layer options. Rather than digging through menus, all of the important options are now just a swipe away.

Swiping from the left of the screen reveals the NavData panel, where you can customize contents to simplify navigation and chart usage. You can set the autopilot, check tide information and much more.

Home Screen

The home screen, with its bright and crisp graphics, is easy to understand and operate. The colors and icons have been carefully chosen to provide maximum visibility, allowing you to know instantly which screen is displayed, just by seeing the color and icon. Changing to different display screens is just a simple matter of dragging and dropping.

Instruments - Fully Customizable

The instrument page is impressive just on its own rights, but where it really shines is it's customizability. No matter if it is for navigation, engine and tank monitoring, autopilot control, or a combination, data can be displayed according to your personal tastes and needs.

Arrange instruments by the touch of your finger. You are free to customize the display to precisely fit your unique needs. Also note that instruments can overlap each other, giving you even more space to work with.

Autopilot Control WindowNEW

The new autopilot control window on the instrument page and data area offers quick and easy control of the NAVpilot Series, including steering operation and mode selection. With the NAVpilot-300, you can also initiate Turn/Fish Hunter operation, adjust manual parameters and carry out installation setup from the NavNet TZtouch2 MFDs.

CZone Digital Switching

CZone digital switching by BEP simplifies the installation and operation of complex electrical systems. NavNet TZtouch2 is compatible with CZone controls, allowing you to operate CZone equipment.

CZone Control & Monitoring
CZone, engine, navigation and various NMEA2000 data can be laid out on the same screen.

Manual Fuel Management*

NavNet TZtouch2 calculates and displays the remaining fuel based on the manually entered tank capacity, as well as fuel consumption information from an NMEA2000 network.
The gauge allows the user to evaluate the price fuel level without equipping the ship with a fuel gauge. By configuring the settings, an alarm is available to inform you when the fuel level is low.

* 1) NMEA 2000 PGN127489 (Fuel Rate) input is required.
  2) Software version 6.0 or later required.
  3) While the engine is running, at least one TZTL12F/TZTL15F in the network should be always turned on in order to keep calculating the fuel consumption.
  4) The fuel indication may be inaccurate if the values entered are not correct, or the fuel rate sensor is not functioning correctly.

Data box
Manual Fuel Tank display in Instrument mode

Integrate YAMAHA outboards with NavNet Series

The YAMAHA graphic interface displays status inforation of engines (up to 4), and ship information can be controlled from the NavNet TZtouch2 via YAMAHA Command Link®, Command Link Plus® and Helm Master® interfaces.

* For more details about the list of compatible engines, please contact us or YAMAHA representatives.

eGuide

With an internal eGuide you never have to worry about losing your manual ever again. Simply open the eGuide from your NavNet TZtouch2 and you can study the different functions and menus in great detail. With helpful tips and tricks along the way, you will master your new NavNet TZtouch2 in no time at all.

Fishfinder

Internal Fish Finder

NavNet TZtouch2 is the first product from FURUNO to feature the brand new RezBoost™ technology.
Accurately spot individual fish and increase your catch.

Multi Beam Sonar
Innovative tool for exploring wide range of water column and seabedNEW

Scanning image of Multi Beam Sonar

New Multi Beam Sonar model DFF-3D gives you real-time 120° port-starboard view of the water column and seabed up to 200 m depth*. The DFF-3D allows you to explore fishing spots and find fish in deep water by far faster than conventional single beam sounders. Alternatively, the main beam penetrates right under the boat at a depth of approximately 300 m*. Installation is made easy, thanks to a compact transducer design. The built-in motion sensor gives you clear images under your boat even in rough water.

* Maximum depth dependent on installation, bottom type and water conditions.

3D history
Side Scan

RezBoost™

Rezboost™ is a revolutionary new technology utilizing FURUNO's advanced digital signal processing to provide fantastic resolution without having to change your transducer.

Conventional Signal Processing
RezBoost™ Signal Processing

Every NavNet TZtouch2 display has a built-in Fish Finder that is dual-frequency (50/200kHz), and has a 600W/1kW power output. With TZtouch2, Furuno is introducing a new, proprietary Fish Finder technology, called RezBoost™. RezBoost™ is a revolutionary new feature that utilizes Furuno's exclusive digital signal processing protocol to produce fish targets and images that are up to 8 times sharper than a conventional Fish Finder*, without the need to change out your narrowband transducer^*1, or purchase an expensive broadband transducer.

* RezBoost™ performance may vary depending on depth, range and signal frequency used.
*1 To check if your transducer supports the "Enhanced Mode", see the list below on this page. In-hull mounted transducers are not compatible with RezBoost™ technology.

FURUNO Digital Filter (FDF™) Fish Finder

FURUNO Digital Filter (FDF™) Fish Finders feature advanced filtering capabilities and digital auto tuning, which eliminates noise. FURUNO FDF™ Fish Finders deliver the ability to spot individual fish with clarity, accuracy and detail. Whether in shallow or deep water, FURUNO FDF™ Fish Finders give you what you would expect from a Fish Finder at all times.

Up to 10 times sharper image than conventional FDF^*2

Find More Fish With TruEcho CHIRP™ Fish Finder

An advanced technology for both professional and enthusiast fishermen. Designed to operate across a wide range of frequencies utilizing a broadband transducer, the TruEcho CHIRP™ network Fish Finder delivers significant advantages in signal clarity and target definition. Due to the constant sweep of frequencies the TruEcho CHIRP™ network Fish Finder is capable of gathering more and higher quality data than a traditional single frequency Fish Finder. The clear presentation marks individual game fish and bait fish, even when tightly schooled together. TruEcho CHIRP technology delivers up to 10 times sharper image over conventional FDF^*2.

*2 TruEcho CHIRP™ performance may vary depending on depth, range and signal frequency used.

High Frequency CHIRP
Low Frequency CHIRP
High Frequency
Wide Beam CHIRP
Low Frequency
Wide Beam CHIRP

ACCU-FISH™ (Fish Size Analyzer)

The ACCU-FISH™ algorithm analyzes echo returns in order to compute individual fish size. The algorithm is capable of computing fish size ranging from 10 cm up to 199 cm long. Fish depth can also be displayed.

In some instances, fish size indicated on the NavNet TZtouch2 may differ from its actual size. Please carefully read the operator's manual prior to utilizing this feature.

Bottom Discrimination Display

Bottom discrimination provides detailed information about Knowing the make-up of the seabed, categorizing it into four different categories; “Rocks”, “Gravel”, “Sand” and “Mud”.
The make-up of the seabed can be tremendously helpful information when looking for fishing grounds, as well as for finding good anchoring spots.

	Internal Fish Finder	DFF1-UHD	DFF3	DFF-3D NEW
		BLACK BOX NETWORK CHIRP FISH FINDER	BLACK BOX NETWORK FISH FINDER	BLACK BOX NETWORK MULTI BEAM SONAR
Frequency	Dual frequency 50kHz and 200 kHz	Dual frequency 50±20 and 200±25 kHz	The synthesized transducer works with dual frequencies between 28 and 200 kHz	165 kHz
Range Scale	Up to 1,200 m		Up to 3,000 m	Up to 1,200 m
Transducers	600 W or 1 kW*	1 kW	1, 2 or 3 kW	800 W
ACCU-FISH™	Available			N/A
Bottom Discrimination	Available		N/A	N/A
TruEcho CHIRP™	N/A	Available	N/A	N/A
RezBoost™	Available	N/A
Display Mode	Auto (Fishing/Cruising/Manual), Bottom Zoom, Bottom Lock, A-Scope			Triple/Single Beam Sounder, Side Scan, Cross Section,3D history

DFF1/BBDS1 are fully compatible with NavNet TZtouch2.
* Matching Box MB-1100 required for some specific FURUNO transducers.
** For DFF3, with 50/200-1T transducer only.

Chart Plotter

Nothing Is Faster Than TimeZero™

NavNet TZtouch2's TimeZero™ technology delivers chart processing like you've never seen before – seamless chart handling, zooming and panning without the screen disappearing. TimeZero™ technology redefines the meaning of stress-free operation by smoothing out your chart handling actions.

The Only Acceptable Wait Time is Zero:
TimeZero™ Technology Changes Your Perspective on Chart Redraw

Equipped with powerful TimeZero™ technology, NavNet TZtouch2 will completely transform the way you navigate. You can scroll, pan, zoom in/out with a smooth, fast and seamless graphics engine. Navigating in a 3D environment offers you a true perspective and wider area of view around the ship, which allows you to better plan your routes. TimeZero™ technology updates the information on your screen with virtually no redraw as you go.

Mapmedia Vector and Raster Chart Library

With NavNet TZtouch2 it's possible to freely choose the charts that fit your individual needs. With the optional NOAA raster and vector charts, Mapmedia brings an authentic vector and raster chart library to your NavNet TZtouch2. “C-MAP” as well as “Datacore by Navionics” vector cartography are optional charts that can be downloaded to your TZtouch2 with ease. Mapmedia cartography integrates cutting edge algorithms with high resolution image processing techniques to deliver a fusion of digital navigation charts and satellite photography.

2D Raster
2D Vector

Satellite PhotoFusion™

Satellite photography is included in the Mapmedia Raster and Vector charts, simply called Satellite PhotoFusion™. Land areas (zero depth) are completely opaque, displayed as satellite photos on the chart. As the depth increases, the satellite image is merged with the chart data to provide you with added detail on seabed areas in shallow water, without losing vital chart information. In deeper water, where the satellite photos have no detail to offer, the chart is displayed without alteration.

Raster+Satellite
Vector+Satellite

Depth Shading

A depth color scale can be applied to both 2D and 3D vector and raster charts. Transparency levels can be adjusted so that chart data is visible beneath the color shading. This unique feature allows you to view water depths at-a-glance with vibrant colors. No more searching for depth numbers, when you can simply set depths to your specified colors. Whether you want to see the depth for navigation or fishing purposes, this feature makes it easier than ever before.

AIS Target Tracking

When connecting a FURUNO FA-30/50/150 AIS unit to your NavNet TZtouch2, up to 100 AIS targets can be tracked and displayed on the Chart Plotter screen. The Automatic Identification System (AIS) improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about AIS-equipped vessels nearby such as speed, heading, Closest Point of Approach and Time to Closest Point of Approach.

Radar

Ultra High Definition (UHD™) Digital Radar

FURUNO has taken its NMEA award-winning radar technology to the next level with Ultra High Definition Digital Radar. UHD™ offers crystal clear target presentation with automatic real-time digital signal processing. The antenna rotation speed (24/36/48 rpm) is automatically shifted according to the pulse length needed for optimal performance. Commercial-grade radar performance is now available in the ultimate MFD navigation suite.

Target Analyzer™ function utilizing Doppler technology spots hazardous targets instantly!

Hazardous targets are displayed in bright red

The NXT series* are the first Radars in the world to use Furuno's exclusive Target Analyzer™ function. Targets that are approaching your vessel automatically change color to help you identify potentially dangerous targets. Green echoes are targets that stay stationary, or are moving away from you, while red echoes are hazardous targets that are moving towards your vessel. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ improves situational awareness and can increase safety by showing you which targets to look out for.

* DRS6A-NXT compatibility Software Version, 5.0.1 or later
* DRS4D-NXT compatibility Software Version, 3.0.1 or later

X-Treme Radar Performance
X-Class series a whole new class of Radar

The radar detects and distinguishes several small yatchs with high accuracy.

Pushing the boundaries of what is possible with conventional Radar technology, X-Class series mark yet another leap forward for FURUNO. Improved in almost all aspects, X-Class Radar features improved short range detection as well as an impressive long range detection of up to 96 nautical miles. And that's not all, the new "Bird Mode" gives you incredible bird detection performance.

*1 TZtouch2 software version v3.01 or later.
*2 Bird mode is also available with DRS-NXT Series.

Bird Mode*

Bird mode and navigation mode can both be displayed via a simultaneous dual mode scanning. Possibility to track the birds while navigating safely

Echo Trail/Echo Average

Echo Trail and Echo Average features have been added to the latest version of NavNet TZtouch2 series. Using the new functions, Bird mode detects and accurately tracks birds, providing a clear view of the target by reducing noise. Echo Trail enhances and amplifies the Target Analyzer and doppler technology to help prevent hazardous situation and gives an intuitive understanding of nearby vessel's movements.

True Echo Trail
Bird mode with Echo Average

Radar-Chart Overlay

A Radar image of spot-on accuracy can be overlaid onto the chart screen on your NavNet TZtouch2. It's not just available in the conventional 2D chart format, but it can also be projected onto a 3D chart presentation. Depending on the range scale selected, the Radar-Chart Overlay adjusts accordingly. This allows you to view the Radar-Chart Overlay at whatever magnification level you find comfortable.

ARPA Target Tracking

With ARPA Target Tracking enabled, up to 30 different targets can be tracked simultaneously. Targets can be acquired either manually or fully automatically. Automatic Radar Plotting Aid (ARPA) calculates the tracked objects course and speed, as well as the CPA (Closest Point of Approach). With this information, the Radar is capable of predicting possible collision courses and sound relevant alarms. In combination with AIS, this spells increased security and ease of mind on your vessel.

Not available on DRS4DL

Real-Time Digital Auto Gain/Sea Controls

2D Raster 2D Vector

NavNet TZtouch2 employs revolutionary real-time digital auto Gain/Sea controls to deliver a crystal clear radar presentation. With this new technology, NavNet TZtouch2 computes and applies an adaptive omni-directional anti-clutter filter with variable intensity according to vessel bearing. With the use of this technology, automatic gain and sea clutter have achieved such a high level of proficiency that one rarely needs to venture into the manual modes. Set the Radar to auto and focus on more important things at hand.

Simultaneous Dual Range Radar Scanning

Simultaneous scanning technology sends out a dual progressive scan that is processed and presented on the NavNet TZtouch2. This technology allows for two different radar ranges to be displayed simultaneously, each range with autonomous control over gain and anti-clutter settings. One of the many things that can be done with dual range scanning is, for example, to set one range for bird detection and the other for navigation.

Not available on DRS4DL

AIS Target Tracking

When connecting a FURUNO FA-30/50/170 AIS unit to your NavNet Series devices, up to 100 AIS targets can be tracked and displayed on the Radar screen. The Automatic Identification System (AIS) improves safety during travel by sharing the status and position of your vessel with other AIS-equipped vessels nearby. You can easily read detailed information about AIS-equipped vessels nearby such as speed, heading and more.

NavNet TZtouch2 Radar Sensor Options

Solid-State Radars

		NXT series
		DRS4D-NXT	DRS6A-NXT	DRS12A-NXT	DRS25A-NXT
Output Power		25 W	25 W	100 W	200 W
Size		24 inch	3.5 ft/4 ft/6 ft	3.5 ft/4 ft/6 ft	3.5 ft/4 ft/6 ft
Antenna Type		Radome	Open	Open	Open
Beam Width	Horizontal	3.9°	2.3°/1.9°/1.35°	2.3°/1.9°/1.35°	2.3°/1.9°/1.35°
Beam Width	Vertical	25°	22°	22°	22°
Max. Range		36 NM	72 NM	96 NM	96 NM
48 rpm Capability		•	•	•	•
Functions		Head-up, North-up*, Target Analyzer, Bird mode, True Echo Trail, Bird mode, TT, AIS		Head-up, North-up*, Target Analyzer, Bird mode, True Echo Trail, Bird mode, TT, AIS
Dual Range Scanning		• (Range is limited to 12 NM)	• (Range is limited to 12 NM)	• (Range is limited to 12 NM)	• (Range is limited to 12 NM)
MFD version required		3.01	5.01	3.01	4.01

* Heading input required for North-up. Heading input is not required for Target Analyzer function, but is recommended for greater performance. The Radar antenna complies with IEC62252 Ed. 1:2004 (Clauses 4.33, 5.33, Annex D) relevant to radio characteristic.

Magnetron Radars

		—	X-Class series
		DRS4DL+	DRS6A X-Class	DRS12A X-Class	DRS25A X-Class
Output Power		4 kW	6 kW	12 kW	25 kW
Size		19 inch	3.5 ft/4 ft/6 ft	4 ft/6 ft	4 ft/6 ft
Antenna Type		Radome	Open	Open	Open
Beam Width	Horizontal	5.2°	2.3°/1.9°/1.35°	1.9°/1.35°	1.9°/1.35°
Beam Width	Vertical	25°	22°/22°/22°	22°/22°	22°/22°
Max. Range		36 NM	96 NM	96 NM	96 NM
48 rpm Capability		—	•	•	•
Functions		Head-up, North-up*, True Echo Trail, TT, AIS	Head-up, North-up*, True Echo Trail, Bird mode, TT, AIS
Dual Range Scanning		—	•	•	•
MFD version required		5.01	3.01	4.01	4.01

Wireless

Marine Weather Forecast

The weather tool is completely free and easy to use, giving you unlimited access to weather forecasts, worldwide, 24 hours a day, provided by NavCenter.
Navnet TZtouch2 can display up to 16 days of downloaded weather forecasting.

My TimeZero Cloud Data Service

Connect your NavNet TZtouch2 to the internet and login on your My TimeZero™ account, and you are able to back up or restore points, routes, tracks and settings to/from the cloud server.

BBWX4 – SiriusXM Satellite Weather Receiver*

Keeping track of weather is easier than ever with Furuno's BBWX4 Fourth-Generation SiriusXM Satellite Weather Receiver!
The weather information is obtained from the weather industry's leading experts and is delivered via digital receiver through SiriusXM' Marine Weather services. You can receive high-quality and comprehensive weather information and forecasting for use while navigating.

*: Satellite weather receiver service is available for all NavNet TZtouch2, TZtouch and NavNet 3D models. Requires SiriusXM weather service subscription, sold separately. SiriusXM weather coverage is currently available only in U.S and Canada.

Documents

Brochures

NavNet TZtouch2 Brochure.pdf (4.792 MB) pdf

Manuals

TZTL12F 15F TZT2BB Operator's Manual (43.970 MB) pdf

TZT2BB Installation Manual (4.495 MB) pdf

Packing Lists

Packing List TZT2BB (49.063 KB) pdf

Technical Info

Miscellaneous Documents

NavNet TZT2BB FAQ (1.395 MB) pdf
